Top Seller
100TN TONS Pressmaster FTP-100 TIRE
Location:
Harrison, NJ
Price:
$16,950 USD
Manufacturer:
Pressmaster
Model:
FTP-100
Weight:
3,800 LBS.

Specifications

Condition:
new
Stock number:
149219
Bore:
8"
Stroke:
12"
Weight:
3,800 LBS.
Tonnage:
100 TONS
Age info:
NEW
Daylight:
30.5"
Motor specs:
5 HP / 230 VOLT / SINGLE PHASE
- safety guard:
$1,000 PER SIDE
Speed (return):
26 IPM
Platen diameter:
25"
Speed (pressing):
11 IPM
Shipping dimensions:
L 50" W 70" H 99"
Distance between posts:
36"
Subcategory:
Tire press
Subcategory 2:
Presses & pressroom

Description

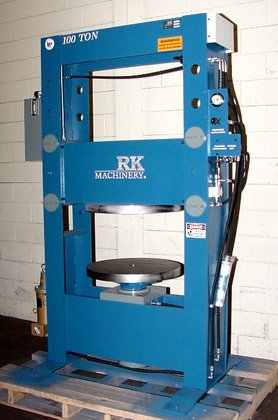

100 TON PRESSMASTER FORKLIFT TIRE PRESS
NEW AND IN STOCK FOR IMMEDIATE DELIVERY
TONNAGE ...................................................... 100 TONS
STROKE ....................................................... 12"
BORE ......................................................... 8"
PLATEN DIAMETER .............................................. 25"
SPEED (PRESSING) ............................................. 11 IPM
SPEED (RETURN) ............................................... 26 IPM
DISTANCE BETWEEN POSTS ....................................... 36"
DAYLIGHT ..................................................... 30.5"
MOTOR SPECS: 5 HP / 230 VOLT / SINGLE PHASE
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING
GASOLINE POWERED ALSO AVAILABLE
STANDARD FEATURES:
- LARGE CYLINDER ROD PROVIDES PLATEN STABILITY AND LONGER SEAL LIFE
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- DOUBLE-ACTING CYLINDER PERMITS PRESSING AS WELL AS RETURN
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY,
16" TRAVEL
- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND
LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING
THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK
- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
- HIGH CAPACITY 6 GAL. HYDRAULIC OIL RESERVOIR
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY,
AND AVAILABLE THROUGHOUT NORTH AMERICA
OPTIONS:
- SAFETY GUARD ................................. $1,000 PER SIDE
SHIPPING DIMENSIONS: L 50" W 70" H 99"
WEIGHT: 3,800 LBS.
