50 Ton 6" Throat Baileigh
Location:
Harrison, NJ
Price:
$12,995 USD
Manufacturer:
Baileigh
Model:
SW-501
Capacity:
.875" x .625"
Weight:
1,650 lbs.

Specifications

Condition:
new
Stock number:
149936
Tooling:
(see diagram above)
Age info:
NEW
-blade length:
10.25"
-throat depth:
6"
-angle bending:
2.5" x .312"
-pipe notching:
2.5"
-punch capacity:
.875" x .625"
-working height:
32.5"
-round bar shear:
1.125"
-square bar shear:
1" x 1"
-working height 2:
40"
-working height 3:
43"
-angle flange trim:
3"
-flat bar shearing:
10" x .375"
-net weight (apr.):
1,650 lbs.
-punching pressure:
50 tons
-dimensions (lxwxh):
38" x 27" x 62"
-max. stroke length:
1.125"
-rect. notcher (wxdxt):
2" x 3.5" x .281"
-at 90-degrees shearing:
3" x 3" x .25"
-electrical requirements:
3 Hp-220V 1-phase
-working height up to die:
39.5"
-multi-vee press brake (lxt):
9.875" x .156"
-single vee press brake (lxt):
6.312" x .312"
-vee-notcher (side x side x t):
3.5" x 3.5" x .312"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

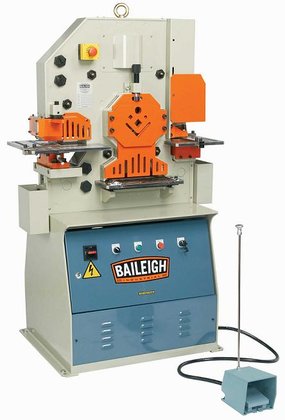

NEW BAILEIGH 50 TON, 5 STATION IRONWORKER
3 HP, 220V, SINGLE PHASE
MODEL: SW-501
FEATURES:
-True vertical movement at all stations
-Oversize tables with adjustable material stops
-Electronic stroke control
-Swing away material stripper
-Material waste bins
-Manual back gauge
-Jog feature for easy tooling setup
-Quick release coupler enables easy tool changeover
-Safety interlock switches
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 50 tons
-Punch Capacity: .875" x .625"
(Diameter x Thickness) 1.625" x .375"
-Throat Depth: 6"
-Max. Stroke Length: 1.125"
-Cycles/Min. 19 @ 15mm
-Working Height Up to Die: 39.5"
FLAT SHEARING:
-Flat Bar Shearing: 10" x .375"
-Blade Length: 10.25"
-Angle Flange Trim: 3"
-Working Height: 32.5"
ANGLE SHEARING:
-At 90-degrees Shearing: 3" x 3" x .25"
-Working Height: 40"
BAR SHEARING:
-Round Bar Shear: 1.125"
-Square Bar Shear: 1" x 1"
-Working Height: 43"
NOTCHING:
-Rect. Notcher (WxDxT): 2" x 3.5" x .281"
-Working Height: 40"
SPECIAL TOOLING:
-Single Vee Press Brake (LxT): 6.312" x .312"
-Multi-Vee Press Brake (LxT): 9.875" x .156"
-Angle Bending: 2.5" x .312"
-Pipe Notching: 2.5"
-Vee-Notcher (Side x Side x T): 3.5" x 3.5" x .312"
OTHER:
-Electrical Requirements: 3 Hp-220V 1-phase
-Net Weight (Apr.): 1,650 lbs.
-Dimensions (LxWxH): 38" x 27" x 62"
TOOLING: (see diagram above)
