62 Ton 8" Throat Baileigh
Location:
Harrison, NJ
Price:
$17,295 USD
Manufacturer:
Baileigh
Model:
SW-621
Capacity:
1.125" x .625"
Weight:
2,310 lbs.

Specifications

Condition:
new
Stock number:
149989
Tooling:
(see diagram above)
Age info:
NEW
-blade length:
14.125"
-i beam shear:
4"
-throat depth:
8"
-angle bending:
2.5" x .312"
-channel shear:
4"
-pipe notching:
2.5"
-punch capacity:
1.125" x .625"
-working height:
31.5"
-round bar shear:
1.5"
-square bar shear:
1.5" x 1.5"
-working height 2:
40"
-working height 3:
44"
-angle flange trim:
4"
-flat bar shearing:
13.50" x .625"
-net weight (apr.):
2,310 lbs.
-punching pressure:
62 tons
-dimensions (lxwxh):
45" x 30" x 68"
-max. stroke length:
2"
-rect. notcher (wxdxt):
2" x 3.5" x .312"
-at 90-degrees shearing:
4" x 4" x .375"
-electrical requirements:
5 Hp-220V 1-phase
-working height up to die:
39.5"
-multi-vee press brake (lxt):
9.875" x .156"
-single vee press brake (lxt):
6.312" x .312"
-vee-notcher (side x side x t):
3.5" x 3.5" x .312"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

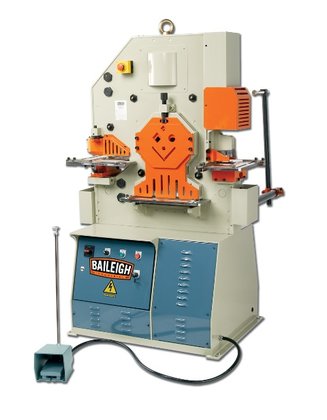

NEW BAILEIGH 62 TON, 5 STATION IRONWORKER
5 HP, 220V, SINGLE PHASE
MODEL: SW-621
FEATURES:
-True vertical movement at all stations
-Oversize tables with adjustable material stops
-Electronic stroke control
-Swing away material stripper
-Material waste bins
-Manual back gauge
-Jog feature for easy tooling setup
-Quick release coupler enables easy tool changeover
-Safety interlock switches
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 62 tons
-Punch Capacity: 1.125" x .625"
(Diameter x Thickness) 1.625" x .437"
-Throat Depth: 8"
-Max. Stroke Length: 2"
-Cycles/Min. 28 @ 15mm
-Working Height Up to Die: 39.5"
FLAT SHEARING:
-Flat Bar Shearing: 13.50" x .625"
-Blade Length: 14.125"
-Angle Flange Trim: 4"
-Working Height: 31.5"
ANGLE SHEARING:
-At 90-degrees Shearing: 4" x 4" x .375"
-Working Height: 40"
BAR SHEARING:
-Round Bar Shear: 1.5"
-Square Bar Shear: 1.5" x 1.5"
-Working Height: 44"
NOTCHING:
-Rect. Notcher (WxDxT): 2" x 3.5" x .312"
-Working Height: 40"
SPECIAL TOOLING:
-Single Vee Press Brake (LxT): 6.312" x .312"
-Multi-Vee Press Brake (LxT): 9.875" x .156"
-Angle Bending: 2.5" x .312"
-Pipe Notching: 2.5"
-Vee-Notcher (Side x Side x T): 3.5" x 3.5" x .312"
-Channel Shear: 4"
-I Beam Shear: 4"
OTHER:
-Electrical Requirements: 5 Hp-220V 1-phase
-Net Weight (Apr.): 2,310 lbs.
-Dimensions (LxWxH): 45" x 30" x 68"
TOOLING: (see diagram above)
