Top Seller
84 Ton 12.25" Throat Baileigh
Location:
Harrison, NJ
Price:
$30,295 USD
Manufacturer:
Baileigh
Model:
SW-84
Capacity:
1.125" x .875"
Weight:
5,060 lbs.

Specifications

Condition:
new
Stock number:
149992
Tooling:
(see diagram above)
Age info:
NEW
-blade length:
16.125"
-throat depth:
12.25"
-angle bending:
4" x .312"
-pipe notching:
2.5"
-punch capacity:
1.125" x .875"
-working height:
33.5"
-round bar shear:
1.75"
-square bar shear:
1.75" x 1.75"
-working height 2:
44"
-working height 3:
48"
-angle flange trim:
4"
-flat bar shearing:
15.75" x .625"
-net weight (apr.):
5,060 lbs.
-punching pressure:
84 tons
-dimensions (lxwxh):
60" x 36" x 78"
-max. stroke length:
3"
-rect. notcher (wxdxt):
2" x 3.5" x .5"
-at 90-degrees shearing:
5.125" x 5.125" x .5"
-electrical requirements:
10 Hp-220V 3-phase
-working height up to die:
43.5"
-multi-vee press brake (lxt):
19.625" x .187"
-single vee press brake (lxt):
9.875" x .625"
-vee-notcher (side x side x t):
3.5" x 3.5" x .5"
-large v-notcher (side x side x t):
5.57" x 5.57" x .375"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

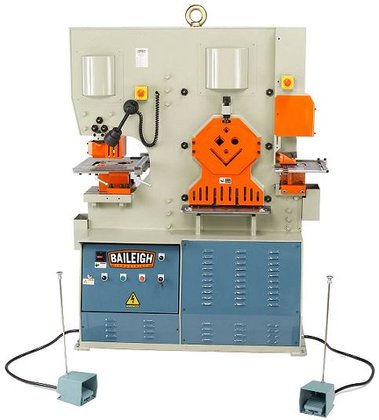

NEW BAILEIGH 84 TON IRONWORKER
5 STATION DUAL OPERATOR, 3-PHASE
MODEL: SW-84
FEATURES:
-Dual Cylinder/Dual Operator Design
-True vertical movement at all stations
-Oversize tables with adjustable material stops
-Two position die holder on easy adjust T-slots
-Electronic stroke control
-Swing away material stripper
-Material waste bins
-Electric back gauge with adjustable timer
-Jog feature for easy tooling setup
-Quick release coupler enables easy tool changeover
-Safety interlock switches
-Halogen work light
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 84 tons
-Punch Capacity: 1.125" x .875"
(Diameter x Thickness) 2" x .5"
-Throat Depth: 12.25"
-Max. Stroke Length: 3"
-Cycles/Min. 38 @ 15mm
-Working Height Up to Die: 43.5"
FLAT SHEARING:
-Flat Bar Shearing: 15.75" x .625"
-Blade Length: 16.125"
-Angle Flange Trim: 4"
-Working Height: 33.5"
ANGLE SHEARING:
-At 90-degrees Shearing: 5.125" x 5.125" x .5"
-Working Height: 44"
BAR SHEARING:
-Round Bar Shear: 1.75"
-Square Bar Shear: 1.75" x 1.75"
-Working Height: 48"
NOTCHING:
-Rect. Notcher (WxDxT): 2" x 3.5" x .5"
-Working Height: 44"
SPECIAL TOOLING:
-Single Vee Press Brake (LxT): 9.875" x .625"
-Multi-Vee Press Brake (LxT): 19.625" x .187"
-Angle Bending: 4" x .312"
-Pipe Notching: 2.5"
-Large V-Notcher (Side x Side x T): 5.57" x 5.57" x .375"
-Vee-Notcher (Side x Side x T): 3.5" x 3.5" x .5"
OTHER:
-Electrical Requirements: 10 Hp-220V 3-phase
-Net Weight (Apr.): 5,060 lbs.
-Dimensions (LxWxH): 60" x 36" x 78"
TOOLING: (see diagram above)
