95 Ton 16" Throat Baileigh
Location:
Harrison, NJ
Price:
$31,795 USD
Manufacturer:
Baileigh
Model:
SW-95
Capacity:
1.062" x .875"
Weight:
6,050 lbs.

Specifications

Condition:
new
Stock number:
150001
Tooling:
(see diagram above)
Age info:
NEW
-blade length:
16.125"
-throat depth:
16"
-angle bending:
4" x .312"
-pipe notching:
4.4"
-punch capacity:
1.062" x .875"
-working height:
28.5"
-round bar shear:
1.75"
-square bar shear:
1.75" x 1.75"
-working height 2:
40.9"
-working height 3:
41.3"
-angle flange trim:
4"
-flat bar shearing:
16" x .75"
-net weight (apr.):
6,050 lbs.
-punching pressure:
95 tons
-dimensions (lxwxh):
70.6" x 40.1" x 73.4"
-max. stroke length:
3.93"
-rect. notcher (wxdxt):
2" x 3.5" x .5"
-at 90-degrees shearing:
5.125" x 5.125" x .5"
-electrical requirements:
10 Hp-220V 3-phase
-working height up to die:
41.3"
-multi-vee press brake (lxt):
19.625" x .187"
-single vee press brake (lxt):
9.875" x .625"
-vee-notcher (side x side x t):
4.1" x 4.1" x .5"
-large v-notcher (side x side x t):
5.75" x 5.75" x .375"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

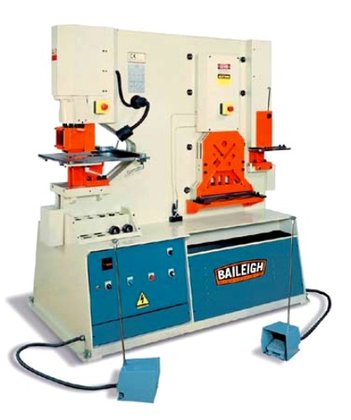

NEW BAILEIGH 95 TON IRONWORKER
5 STATION DUAL OPERATOR, 3-PHASE
MODEL: SW-95
FEATURES:
-Dual Cylinder/Dual Operator Design
-True vertical movement at all stations
-Hydraulic material hold downs at shear station
-Oversize tables with adjustable material stops
-Two position die holder on easy adjust T-slots
-Electronic stroke control
-Swing away material stripper
-Material waste bins
-Electric back gauge with adjustable timer
-Jog feature for easy tooling setup
-Quick release coupler enables easy tool changeover
-Safety interlock switches
-Halogen work light
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 95 tons
-Punch Capacity: 1.062" x .875"
(Diameter x Thickness) 2" x .5"
-Throat Depth: 16"
-Max. Stroke Length: 3.93"
-Cycles/Min. 38 @ 15mm
-Working Height Up to Die: 41.3"
FLAT SHEARING:
-Flat Bar Shearing: 16" x .75"
-Blade Length: 16.125"
-Angle Flange Trim: 4"
-Working Height: 28.5"
ANGLE SHEARING:
-At 90-degrees Shearing: 5.125" x 5.125" x .5"
-Working Height: 40.9"
BAR SHEARING:
-Round Bar Shear: 1.75"
-Square Bar Shear: 1.75" x 1.75"
NOTCHING:
-Rect. Notcher (WxDxT): 2" x 3.5" x .5"
-Working Height: 41.3"
SPECIAL TOOLING:
-Single Vee Press Brake (LxT): 9.875" x .625"
-Multi-Vee Press Brake (LxT): 19.625" x .187"
-Angle Bending: 4" x .312"
-Pipe Notching: 4.4"
-Large V-Notcher (Side x Side x T): 5.75" x 5.75" x .375"
-Vee-Notcher (Side x Side x T): 4.1" x 4.1" x .5"
OTHER:
-Electrical Requirements: 10 Hp-220V 3-phase
-Net Weight (Apr.): 6,050 lbs.
-Dimensions (LxWxH): 70.6" x 40.1" x 73.4"
TOOLING: (see diagram above)
