Top Seller

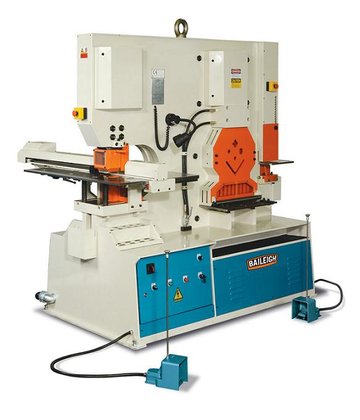

132 Ton 16" Throat Baileigh
Location:
Harrison, NJ
Price:
$49,995 USD
Manufacturer:
Baileigh
Model:
SW-132
Capacity:
1.125" x 1.062"
Weight:
9,460 lbs.

Specifications

Condition:
new
Stock number:
150002
Tooling:
(see diagram above)
Age info:
NEW
-blade length:
18.3"
-throat depth:
16"
-angle bending:
4" x .5"
-pipe notching:
4.4"
-punch capacity:
1.125" x 1.062"
-working height:
30.3"
-round bar shear:
1.75"
-square bar shear:
1.75" x 1.75"
-working height 2:
39"
-working height 3:
41.3"
-angle flange trim:
4"
-flat bar shearing:
18.1" x .75"
-net weight (apr.):
9,460 lbs.
-punching pressure:
95 tons
-dimensions (lxwxh):
85.5" x 44" x 80.7"
-max. stroke length:
3"
-rect. notcher (wxdxt):
2" x 3.5" x .5"
-at 90-degrees shearing:
6" x 6" x .6"
-electrical requirements:
15 Hp-220V 3-phase
-working height up to die:
41.3"
-multi-vee press brake (lxt):
27.5" x .187"
-single vee press brake (lxt):
9.875" x .75"
-vee-notcher (side x side x t):
4.1" x 4.1" x .6"
-large v-notcher (side x side x t):
5.75" x 5.75" x .5"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW BAILEIGH 132 TON IRONWORKER
5 STATION DUAL OPERATOR, 3-PHASE
MODEL: SW-132
FEATURES:
-Dual Cylinder/Dual Operator Design
-True vertical movement at all stations
-Hydraulic material hold downs at shear station
-Oversize tables with adjustable material stops
-Two position die holder on easy adjust T-slots
-Electronic stroke control
-Swing away material stripper
-Material waste bins
-Electric back gauge with adjustable timer
-Jog feature for easy tooling setup
-Quick release coupler enables easy tool changeover
-Safety interlock switches
-Halogen work light
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 95 tons
-Punch Capacity: 1.125" x 1.062"
(Diameter x Thickness) 2" x .625"
-Throat Depth: 16"
-Max. Stroke Length: 3"
-Cycles/Min. 30 @ 15mm
-Working Height Up to Die: 41.3"
FLAT SHEARING:
-Flat Bar Shearing: 18.1" x .75"
-Blade Length: 18.3"
-Angle Flange Trim: 4"
-Working Height: 30.3"
ANGLE SHEARING:
-At 90-degrees Shearing: 6" x 6" x .6"
-Working Height: 39"
BAR SHEARING:
-Round Bar Shear: 1.75"
-Square Bar Shear: 1.75" x 1.75"
NOTCHING:
-Rect. Notcher (WxDxT): 2" x 3.5" x .5"
-Working Height: 41.3"
SPECIAL TOOLING:
-Single Vee Press Brake (LxT): 9.875" x .75"
-Multi-Vee Press Brake (LxT): 27.5" x .187"
-Angle Bending: 4" x .5"
-Pipe Notching: 4.4"
-Large V-Notcher (Side x Side x T): 5.75" x 5.75" x .5"
-Vee-Notcher (Side x Side x T): 4.1" x 4.1" x .6"
OTHER:
-Electrical Requirements: 15 Hp-220V 3-phase
-Net Weight (Apr.): 9,460 lbs.
-Dimensions (LxWxH): 85.5" x 44" x 80.7"
TOOLING: (see diagram above)
