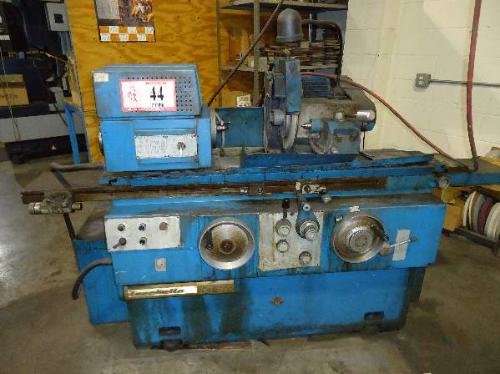

10" Swing 24" Centers Tacchella
Location:
Harrison, NJ
Model:
612U
Weight:
5,200 LBS.

Specifications

Condition:
used
Stock number:
149885
Angle):
10 DEGREES
On dia:
0.0005" TO .002"
Swivel range:
+/- 90 DEGREES
Approx. weight:
5,200 LBS.
Grinding wheel:
14" DIA.
Traverse speed:
4" TO 276" I.P.M.
Workhead taper:
#3 MT
Tailstock taper:
#3 MT
Tailstock stroke:
3/4"
Approx. dimensions:
64" X 60" X 70"H
Workhead swivel range:
+/- 90 DEGREES
Workhead spindle speeds:
30 TO 600 RPM
Distance between centers:
24"
Infeed handwheel, 1 grad:
0.0002"
Maximum swing over table:
10"
Dia. of hole, workhead spindle:
1- 7/16"
(2) grinding wheel spindle speeds:
1640/1900 R.P.M.

Description

10" X 24" TACCHELLA "ITALIAN" PRECISION
UNIVERSAL CYLINDRICAL GRINDER
MODEL: 612U
MAXIMUM SWING OVER TABLE............... 10"
DISTANCE BETWEEN CENTERS............... 24"
TABLE:
TRAVERSE SPEED......................... 4" TO 276" I.P.M.
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE)................................. 10 DEGREES
GRINDING WHEEL ........................ 14" DIA.
2- 3/4" MAX. WIDITH
5" HOLE
SWIVEL RANGE .......................... +/- 90 DEGREES
(2) GRINDING WHEEL SPINDLE SPEEDS...... 1640/1900 R.P.M.
INFEED HANDWHEEL, 1 GRAD. = ........... 0.0002"
AUTOMATIC INFEED @ TABLE REVERSAL,
ON DIA. .............................. 0.0005" TO .002"
MOTORIZED WORKHEAD AND TAILSTOCK:
WORKHEAD SPINDLE SPEEDS .............. 30 TO 600 RPM
WORKHEAD TAPER......................... #3 MT
DIA. OF HOLE, WORKHEAD SPINDLE......... 1- 7/16"
WORKHEAD SWIVEL RANGE.................. +/- 90 DEGREES
TAILSTOCK TAPER........................ #3 MT
TAILSTOCK STROKE ...................... 3/4"
APPROX. DIMENSIONS .................... 64" X 60" X 70"H
APPROX. WEIGHT ........................ 5,200 LBS.
MACHINE FEATURES
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER AUTO CYCLE CONTROL
-AUTO TABLE TRAVERSE
-AUTO INFEED
DUAL LIVE/DEAD HEADSTOCK SPINDLE
14" GRINDING WHEEL PRESENTLY ON MACHINE
INFINITELY VARIABLE ELECTRONIC SPEED CONTROL FOR WORKHEAD
LUBRICATION SYSTEM
COOLANT SYSTEM
MOTORS ON MACHINE ARE DUAL VOLTAGE (220/440 VOLTS)
SPECIAL NOTE:
ITALIAN BUILT MACHINE, SUPERIOR QUALITY! **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
