Top Seller
2" Dia Baileigh RDB-125 NEW
Location:
Harrison, NJ
Price:
$4,695 USD
Manufacturer:
Baileigh
Weight:
350 lbs.

Specifications

Condition:
new
Stock number:
150025
-width:
22.00"
-height:
42.00"
-length:
42.00"
-weight:
350 lbs.
Age info:
NEW
-minimum od:
.25"
-minimum clr:
.50"
-power requirements:
110V
-mild steel solid rod:
1.25"
-aluminum round tube (wall):
2.50" (.156)
-aluminum pipe (schedule 40):
2.00"
-chromolly round tube (wall):
2.00" (.125)
-mild steel round tube (wall):
2.50" (.125)
-mild steel pipe (schedule 40):
2.00"
-mild steel square tube (wall):
2.00" (.125)
For tube & pipe bending, model:
RDB-125
-maximum center line radius* (clr):
10.50"
-stainless steel round tube (wall):
2.375" (.125)
-stainless steel pipe (schedule 40):
1.50"

Description

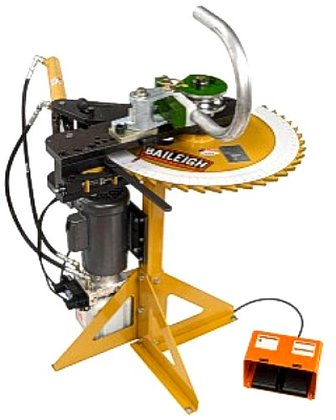

NEW BAILEIGH HYDRAULIC ROTARY DRAW BENDER
FOR TUBE & PIPE BENDING, MODEL: RDB-125
See video of machine in operation at -

FEATURES:
-Low pressure industrial grade hydraulic system
-Uses standard Baileigh Industrial drop on die sets for fast tooling changes
-Replaceable bronze bushings at all pivot points with grease zerks
-Anti-spring back mechanism included
-Integrated degree dial with bend indicator included
-Infinite tooling possibilities
SPECIFICATIONS:
-Mild Steel Pipe (Schedule 40): 2.00"
-Aluminum Pipe (Schedule 40): 2.00"
-Stainless Steel Pipe (Schedule 40): 1.50"
-Mild Steel Round Tube (Wall): 2.50" (.125)
-Aluminum Round Tube (Wall): 2.50" (.156)
-Stainless Steel Round Tube (Wall): 2.375" (.125)
-Chromolly Round Tube (Wall): 2.00" (.125)
-Mild Steel Solid Rod: 1.25"
-Mild Steel Square Tube (Wall): 2.00" (.125)
-Minimum OD: .25"
-Maximum Center Line Radius* (CLR): 10.50"
-Minimum CLR: .50"
-Power Requirements: 110V
-Weight: 350 lbs.
-Length: 42.00"
-Width: 22.00"
-Height: 42.00"
*Maximum CLR dependant on material outside diameter.
OPTIONAL TOOLING (Call for Pricing):
-Die Sets and Packages* (see diagram above)
-Angle Finder
-Inside and Outside Radius Gauges
-Universal Bend Plate
-B-lube
*All pipe packages based on Schedule 40 pipe.
