Top Seller
2.5" Dia Baileigh RDB-350-TS NEW
Location:
Harrison, NJ
Price:
$21,395 USD
Manufacturer:
Baileigh
Weight:
1,500 lbs.

Specifications

Condition:
new
Stock number:
150093
-width:
32.00"
-height:
46.00"
-length:
69.00"
-weight:
1,500 lbs.
Age info:
NEW
-minimum od:
.24"
-minimum clr:
.50"
-power requirements:
220V (3 Ph)
-mild steel solid rod:
1.50"
-rotary positioning tables:
10ft., 15ft., & 20ft. lengths
-aluminum round tube (wall):
3.50" (.250)
-aluminum pipe (schedule 40):
3.00"
-chromolly round tube (wall):
2.50" (.125)
-maximum speed to 180 degrees:
16 Sec.
-mild steel round tube (wall):
3.00" (.187)
-mild steel pipe (schedule 40):
2.50"
-mild steel square tube (wall):
3.00" (.125)
For tube & pipe bending, model:
RDB-350-TS
-maximum center line radius* (clr):
24.00"
-stainless steel round tube (wall):
3.00" (.125)
-stainless steel pipe (schedule 40):
2.00"

Description

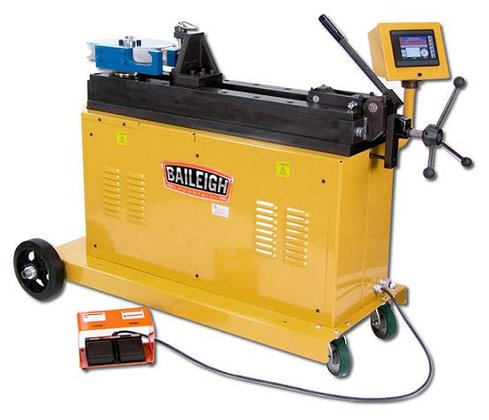

NEW BAILEIGH TOUCH SCREEN PROGRAMMABLE ROTARY DRAW BENDER
FOR TUBE & PIPE BENDING, MODEL: RDB-350-TS
FEATURES:
-Computer programmable
-Easy to use touch screen controls
-Programmer holds 170 jobs with 10-bends per job
-Can bend 360 degrees left or right (with optional tooling)
-Quick release counter die system
-Fast, 16-seconds to 180 degrees
-24" (610 mm) maximum centerline radius
-Accepts optional positioning table
SPECIFICATIONS:
-Mild Steel Pipe (Schedule 40): 2.50"
-Aluminum Pipe (Schedule 40): 3.00"
-Stainless Steel Pipe (Schedule 40): 2.00"
-Mild Steel Round Tube (Wall): 3.00" (.187)
-Aluminum Round Tube (Wall): 3.50" (.250)
-Stainless Steel Round Tube (Wall): 3.00" (.125)
-Chromolly Round Tube (Wall): 2.50" (.125)
-Mild Steel Solid Rod: 1.50"
-Mild Steel Square Tube (Wall): 3.00" (.125)
-Minimum OD: .24"
-Maximum Speed to 180 Degrees: 16 Sec.
-Maximum Center Line Radius* (CLR): 24.00"
-Minimum CLR: .50"
-Power Requirements: 220V (3 Ph)
-Weight: 1,500 lbs.
-Length: 69.00"
-Width: 32.00"
-Height: 46.00"
*Maximum CLR dependant on material outside diameter.
OPTIONAL TOOLING (Call for Pricing):
-Die Sets and Packages* (see diagram above)
-Angle Finder
-Inside and Outside Radius Gauges
-Rotary Positioning Tables: 10ft., 15ft., & 20ft. lengths
-Universal Bend Plate
-B-lube
-Mini Mandrel Attachment
*All pipe packages based on Schedule 40 pipe.
