Top Seller
3" Dia Baileigh RDB-500 NEW
Location:
Harrison, NJ
Price:
$25,395 USD
Manufacturer:
Baileigh
Model:
RDB-500
Weight:
1,800 lbs.

Specifications

Condition:
new
Stock number:
150266
-width:
56.00"
-height:
41.00"
-length:
70.00"
-weight:
1,800 lbs.
Age info:
NEW
-minimum od:
.25"
-minimum clr:
.50"
-power requirements:
220V (3 Ph)
-mild steel solid rod:
2.00"
-aluminum round tube (wall):
3.50" (.250)
-aluminum pipe (schedule 40):
3.50"
-chromolly round tube (wall):
3.50" (.187)
-maximum speed to 180 degrees:
36 Sec.
-mild steel round tube (wall):
3.00" (.250)
-mild steel pipe (schedule 40):
3.00"
-mild steel square tube (wall):
3.00" (.250)
For tube & pipe bending, model:
RDB-500
-maximum center line radius* (clr):
20.00"
-stainless steel round tube (wall):
3.50" (.187)
-stainless steel pipe (schedule 40):
2.50"

Description

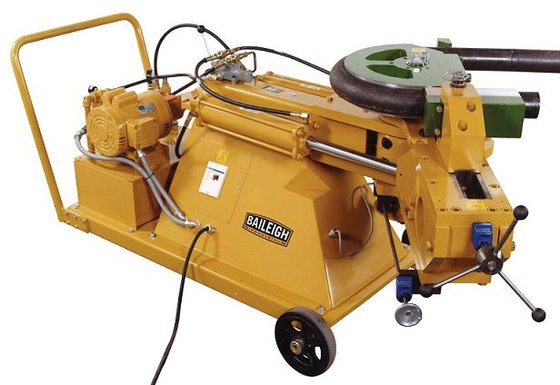

NEW BAILEIGH HYDRAULIC ROTARY DRAW BENDER
FOR TUBE & PIPE BENDING, MODEL: RDB-500
FEATURES:
-Auto stop for bend repeatability included
-Bends to 180 degrees in one shot
-Low pressure industrial grade hydraulic system
-Uses standard Baileigh Industrial drop on die sets for fast tooling changes
-Replaceable bronze bushings at all pivot points with grease zerks
-Infinite tooling possibilities
SPECIFICATIONS:
-Mild Steel Pipe (Schedule 40): 3.00"
-Aluminum Pipe (Schedule 40): 3.50"
-Stainless Steel Pipe (Schedule 40): 2.50"
-Mild Steel Round Tube (Wall): 3.00" (.250)
-Aluminum Round Tube (Wall): 3.50" (.250)
-Stainless Steel Round Tube (Wall): 3.50" (.187)
-Chromolly Round Tube (Wall): 3.50" (.187)
-Mild Steel Solid Rod: 2.00"
-Mild Steel Square Tube (Wall): 3.00" (.250)
-Minimum OD: .25"
-Maximum Speed to 180 Degrees: 36 Sec.
-Maximum Center Line Radius* (CLR): 20.00"
-Minimum CLR: .50"
-Power Requirements: 220V (3 Ph)
-Weight: 1,800 lbs.
-Length: 70.00"
-Width: 56.00"
-Height: 41.00"
*Maximum CLR dependant on material outside diameter.
OPTIONAL TOOLING (Call for Pricing):
-Die Sets and Packages* (see diagram above)
-Angle Finder
-Inside and Outside Radius Gauges
-Universal Bend Plate
-B-lube
*All pipe packages based on Schedule 40 pipe.
