Top Seller
33" Swing 168" Centers Lodge
Location:
Harrison, NJ
Model:
Profitturn 40
Distance between Centers:
168"
Spindle Nose:
15" A-1

Specifications

Condition:
used
Serial number:
49934
Stock number:
150471
Type:
HIGH PERFORMANCE
Model 2:
18T CONTROL
Tool size:
1-1/2"X1-1/2"X6"
Spindle nose:
15" A-1
Tool holders:
STD FLANGED
Five stations:
11.5 SEC
Traverse rate:
300
Every rpm from:
7-1100 RPM
Bed width/depth:
25-1/4"
Spindle collect:
#6
Cross slide travel:
24-15/16"
Spindle horsepower:
50 HP
Swing over bed ways:
33"
Hole through spindle:
7"
Swing over cross slide:
21-1/2"
Tailstock spindle quill:
6"
Curvic coupling diameter:
14-3/4"
Distance between centers:
168"
Turret size across flats:
17-1/4"
Feed drives range of feeds:
0-300
In three mechanical ranges:
6-850 RPM
Maximum stroke (hyd-actuated):
11"
Index time (one station-60 degree):
3.5 SEC
Subcategory:
Cnc machines

Description

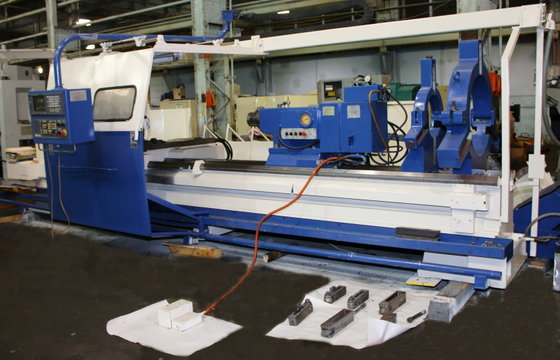

LODGE & SHIPLEY FLAT BED CNC LATHE
MODEL: PROFITURN 40, S/N: 49934
SPECIFICATIONS:
TURNING CAPACITY:
SWING OVER BED WAYS ........................... 33"
SWING OVER CROSS SLIDE ........................ 21-1/2"
DISTANCE BETWEEN CENTERS ...................... 168"
CROSS SLIDE TRAVEL ............................ 24-15/16"
SPINDLE HORSEPOWER ............................ 50 HP
NC CONTROLLED SPEEDS
IN THREE MECHANICAL RANGES..................... 6-850 RPM
EVERY RPM FROM ................................ 7-1100 RPM
SPINDLE NOSE .................................. 15" A-1
HOLE THROUGH SPINDLE .......................... 7"
SPINDLE COLLECT ............................... #6
BED WIDTH/DEPTH/............................... 25-1/4"
DISTANCE FROM FRONT WAY TO CENTERLINE OF WORK . 14-7/8"
FEED DRIVES RANGE OF FEEDS .................... 0-300
TRAVERSE RATE ................................. 300
TYPE .......................................... HIGH PERFORMANCE
TAILSTOCK SPINDLE QUILL........................ 6"
MAXIMUM STROKE (HYD-ACTUATED) ................. 11"
TURRET
SIX-STATION HORIZONTAL NUMBER OF POSITIONS .... 12
TURRET SIZE ACROSS FLATS ...................... 17-1/4"
TOOL HOLDERS .................................. STD FLANGED
TOOL SIZE ..................................... 1-1/2"X1-1/2"X6"
CURVIC COUPLING DIAMETER ...................... 14-3/4"
INDEX TIME (ONE STATION-60 DEGREE) ............ 3.5 SEC
FIVE STATIONS ................................. 11.5 SEC
EQUIPPED WITH:
*
FANUC
MODEL: 18T CONTROL
*
FANUC
RED CAP AC SERVO AXES MOTORS
* 25" 3-JAW MANUAL CHUCK
* 25" ROLLER TYPE STEADY REST
* SECOND STEADY REST
* CHIP CONVEYOR
* HYDRAULIC POWER TAILSTOCK
* 50 HORSEPOWER SPINDLE MOTOR
video:

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
