Top Seller
11" Blade Dia 3hp HP
Location:
Harrison, NJ
Price:
$3,495 USD
Manufacturer:
Baileigh saws
Model:
CS-275M
Motor:
3.0/1.5 hp
Weight:
724 lbs.

Specifications

Condition:
new
Stock number:
151319
Motor:
3.0/1.5 hp
Age info:
NEW
Operation:
manual
Arbor size:
1.26"
Head miter:
90 degrees slotting, 45 degrees left/45 degrees right
Head style:
pivot
Vise style:
dual action, self centering
Blade speed:
two speeds, 60 rpm/120 rpm
Coolant system:
yes
Shipping weight:
724 lbs.
Slotting capable:
yes, left and right
Maximum vise opening:
4.5"
Maximum blade diameter:
11"
Electrical requirements:
220V, 3-phase
Round tube @ 45 degrees:
2.25"
Round tube @ 90 degrees:
2.75"
Round solid @ 45 degrees:
1.5"
Round solid @ 90 degrees:
1.5"
Square tube @ 45 degrees:
2.165" x 2.165"
Square tube @ 90 degrees:
2.75" x 2.75"
Rectangle tube @ 45 degrees:
2.165" x 2.25"
Rectangle tube @ 90 degrees:
2.75" x 2.9"
Shipping dimensions (lxwxh):
60" x 44" x 48"
Subcategory:
New cold saws

Description

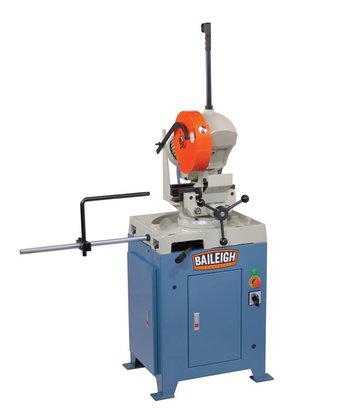

NEW BAILEIGH HEAVY DUTY MANUALLY OPERATED COLD SAW
MODEL: CS-275M
FEATURES:
11" blade
Miters both ways
Stop mechanism
Cuts ferrous and non-ferrous metals
2-3/4" capacity
220V, 3-phase
MITERING CAPACITIES:
Round tube @ 90 degrees: 2.75"
Round solid @ 90 degrees: 1.5"
Square tube @ 90 degrees: 2.75" x 2.75"
Rectangle tube @ 90 degrees: 2.75" x 2.9"
Round tube @ 45 degrees: 2.25"
Round solid @ 45 degrees: 1.5"
Square tube @ 45 degrees: 2.165" x 2.165"
Rectangle tube @ 45 degrees: 2.165" x 2.25"
SPECIFICATIONS:
Maximum blade diameter: 11"
Arbor size: 1.26"
Blade speed: two speeds, 60 rpm/120 rpm
Operation: manual
Head style: pivot
Maximum vise opening: 4.5"
Vise style: dual action, self centering
Head miter: 90 degrees slotting, 45 degrees left/45 degrees right
Slotting capable: yes, left and right
Coolant system: yes
Motor: 3.0/1.5 hp
Electrical requirements: 220V, 3-phase
Shipping dimensions (LxWxH): 60" x 44" x 48"
Shipping weight: 724 lbs.
OPTIONAL (call for pricing):
Blades
Bio-Degradable Saw Coolant
