Top Seller
14" Blade Dia 4hp HP
Location:
Harrison, NJ
Price:
$4,995 USD
Manufacturer:
Baileigh saws
Model:
CS-350M
Motor:
4.0/3.0 hp
Weight:
820 lbs.

Specifications

Condition:
new
Stock number:
151321
Motor:
4.0/3.0 hp
Age info:
NEW
Operation:
manual
Arbor size:
1.26"
Head miter:
90 degrees slotting, 45 degrees left/45 degrees right
Head style:
pivot
Vise style:
dual action, self centering
Blade speed:
two speeds, 26 rpm/52 rpm
Coolant system:
yes
Shipping weight:
820 lbs.
Slotting capable:
yes, left and right
Maximum vise opening:
6.5"
Maximum blade diameter:
14"
Electrical requirements:
220V, 3-phase
Round tube @ 45 degrees:
2.953"
Round tube @ 90 degrees:
4.331"
Round solid @ 45 degrees:
1.575"
Round solid @ 90 degrees:
2.362"
Square tube @ 45 degrees:
2.953" x 2.953"
Square tube @ 90 degrees:
4.25" x 4.25"
Rectangle tube @ 45 degrees:
2.953" x 2.362"
Rectangle tube @ 90 degrees:
4.25" x 3.5"
Shipping dimensions (lxwxh):
60" x 44" x 48"
Subcategory:
New cold saws

Description

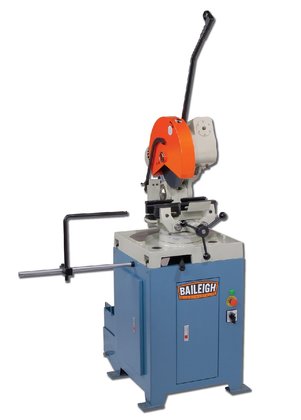

NEW BAILEIGH HEAVY DUTY MANUALLY OPERATED COLD SAW
MODEL: CS-350M
FEATURES:
14" blade
Manual feed
Miters up to 45 degrees left and right
220V, 3-phase
MITERING CAPACITIES:
Round tube @ 90 degrees: 4.331"
Round solid @ 90 degrees: 2.362"
Square tube @ 90 degrees: 4.25" x 4.25"
Rectangle tube @ 90 degrees: 4.25" x 3.5"
Round tube @ 45 degrees: 2.953"
Round solid @ 45 degrees: 1.575"
Square tube @ 45 degrees: 2.953" x 2.953"
Rectangle tube @ 45 degrees: 2.953" x 2.362"
SPECIFICATIONS:
Maximum blade diameter: 14"
Arbor size: 1.26"
Blade speed: two speeds, 26 rpm/52 rpm
Operation: manual
Head style: pivot
Maximum vise opening: 6.5"
Vise style: dual action, self centering
Head miter: 90 degrees slotting, 45 degrees left/45 degrees right
Slotting capable: yes, left and right
Coolant system: yes
Motor: 4.0/3.0 hp
Electrical requirements: 220V, 3-phase
Shipping dimensions (LxWxH): 60" x 44" x 48"
Shipping weight: 820 lbs.
OPTIONAL (call for pricing):
Blades
Bio-Degradable Saw Coolant
