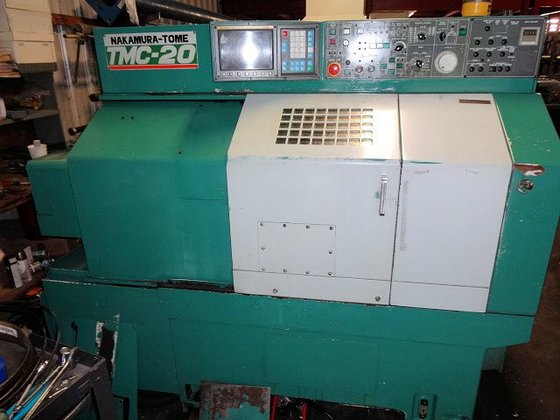

1988 Nakamura-Tome TMC-20 CNC LATHE,
Location:
Harrison, NJ
Manufacturer:
LNS lathes
Model:
TMC-20

Specifications

Condition:
used
Year:
1988
Stock number:
151479
Subcategory:
Cnc machines

Description

NAKAMURA TOME CNC TURNING CENTER
MODEL TMC-20 S/N C-5373 NEW AUGUST 1988
ROUND COLLET CAPACITY 1-5/8"
CHUCK DIA. 6"
SWING OVER BED 15.75"
SWING OVER SADDLE 11.01"
MAX. TURNING LENGTH 11.81"
DRIVE MOTOR 7.5/10HP
SPINDLE SREED RANGE 45 - 4500 RPM
SPINDLE NOSE A2-5
HOLE THRU SPINDLE 2.17"
HOLE THRU DRAW TUBE 1.69"
X-AXIS TRAVEL 5.31"
Z-AXIS TRAVEL 13.39"
RAPID TRAVERSE X/Z 394/472 IPM
APPROX DIMENSIONS 77"X76"X63"
APPROX WEIGHT 5500 LBS
EQUIPPED WITH:
FANUC OTC CONTROL
10 POSITION TURRET
AHD FLEX-E-ON COLLET CHUCK, FX 520
CAPACITY TO 1.81", SOLID COLLETS TO 2"
ALL AVAILABLE TOOL HOLDERS
CHIP CONVEYOR
LNS MINI SPRINT BAR FEEDER
F.O.B. NORWOOD, MA
