1982 8" Width 18" Length
Location:
Harrison, NJ
Manufacturer:
Boyar-Schultz
Model:
3A HUSK-E-LINE
Weight:
2,450 Lbs.

Specifications

Condition:
used
Year:
1982
Serial number:
818-20361-3A
Stock number:
151557
Wheel dress:
MANUAL OR 0-80"
Cross feed travel:
9-1/4"
Vertical handwheel:
0.0001"
Cross feed handwheel:
0.001"
Width& length ground:
8" X 18"
Approx. machine weight:
2,450 Lbs.
Grinding wheel diameter:
8"
Longitudinal table speed:
0 TO 70 FPM
Longitudinal table travel:
21"
Total auto downfeed range:
0.001"
Automatic cross feed increment:
0 TO 3/8"
Max. height under 7" wheel to table:
13"

Description

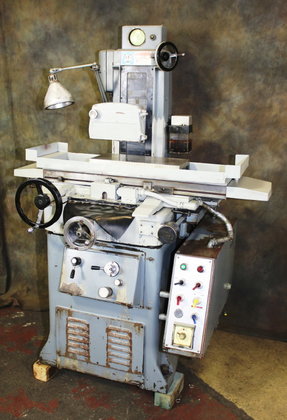

8" X 18" BOYAR SCHULTZ "HUSK-E-LINE" SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: 3A818 "HUSK-E-LINE" S/N: 818-20361-3A NEW: 1982
WIDTH& LENGTH GROUND .....................8" X 18"
MAX. HEIGHT UNDER 7" WHEEL TO TABLE ........... 13"
LONGITUDINAL TABLE TRAVEL ..................... 21"
LONGITUDINAL TABLE SPEED .............. 0 TO 70 FPM
CROSS FEED TRAVEL .......................... 9-1/4"
AUTOMATIC CROSS FEED INCREMENT .......... 0 TO 3/8"
WHEEL DRESS ....................... MANUAL OR 0-80"
CROSS FEED HANDWHEEL ....................... 0.001"
AUTO INCREMENTAL DOWNFEED (5 STEPS) .. 0.0001" - .002"
TOTAL AUTO DOWNFEED RANGE .................. 0.001"
VERTICAL HANDWHEEL ........................ 0.0001"
GRINDING WHEEL DIAMETER ....................... 8"
APPROX. MACHINE WEIGHT ................. 2,450 Lbs.
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE CYCLES)
NUMBER OF SPARKOUT PASSES IS PRE-SELECTABLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC LONGITUDINAL & CROSS FEEDS
1 H.P. BOYAR SCHULTZ SUPER-PRECISION DIRECT DRIVE
SPINDLE, 3450 RPM
HARD STEEL WAYS
CROSS FEED LOCK
AUTOMATIC LUBRICATOR TO ENSURE THAT WAYS, SCREWS,
AND ALL WEAR PARTS ARE PROPERLY OILED.
SELF-CONTAINED HYDRAULICS SYSTEM
8" x 18" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK, SERVICED BY "MAGNETOOL"
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
