1980 8" Swing 14" Centers
Location:
Harrison, NJ
Model:
814U Valuemaster

Specifications

Condition:
used
Year:
1980
Serial number:
525-8144-2290
Stock number:
151809
- table travel:
22"
- grinds length:
14"
- wheelhead travel:
8-3/8"
- grinds work up to:
8" DIAMETER
- spindle speeds (4):
128 TO 540 RPM
- grinding wheel size:
7" DIAMETER
- swivels left & right:
100 DEGREES
- distance between centers:
24"
- travel per rev. of handwheel:
1/4" SLOW
- angular setting to left & right:
90 DEGREES
- wheelhead swivels, left & right:
110 DEGREES

Description

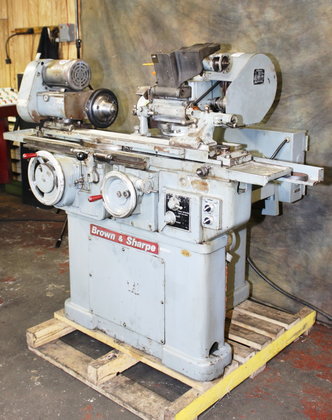

BROWN & SHARPE "PRECISION" UNIVERSAL CYLINDRICAL GRINDER
SWING DOWN I.D. GRINDING ATTACHMENT WITH SPINDLE AVAILABLE
TO PURCHASE FOR THIS MACHINE, ACCESSORY IS SHOWN IN PHOTOS,
P.O.R.
MODEL: 814U VALUEMASTER S/N: 525-8144-2290 NEW: 1980
CAPACITY:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ................................. 14"
- DISTANCE BETWEEN CENTERS ...................... 24"
WHEELHEAD:
- GRINDING WHEEL SIZE ................... 7" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ........................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES
SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL .................................. 22"
- TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
6-1/4" FAST
HEADSTOCK:
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM
EQUIPPED WITH:
POWER TABLE TRAVERSE (OPTION)
DOUBLE ENDED WHEEL SPINDLE
CURRENTLY SET-UP WITH 7" GRINDING WHEEL
DUAL LIVE/DEAD HEADSTOCK SPINDLE
COLLET CHUCK
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
COOLANT PUMP & PIPING
1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
SPECIAL NOTE:
SWING DOWN I.D. GRINDING ATTACHMENT WITH SPINDLE AVAILABLE
TO PURCHASE FOR THIS MACHINE, ACCESSORY IS SHOWN IN PHOTOS,
P.O.R.
** EXCELLENT CONDITION& APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
