Top Seller
1988 20" Swing 24" Centers
Location:
Harrison, NJ
Price:
$14,500 USD
Manufacturer:
Hitachi lathes
Model:
HT25D
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
1988
Stock number:
151999
Tool size:
1" (25mm)
Main motor:
35HP AC (26kw)
Bar capacity:
2.5" (63mm)
Shaft length:
24" (600mm)
Spindle nose:
A2-8
Spindle speed:
20-3600 RPM
Approx. weight:
12,760lbs. (5800kg)
Tool size od/id:
1" (25mm)/1.5" (40mm)
Hole thru spindle:
2.8" (70.5mm)
Rapid traverse x/z:
315/472 IPM
Chuck size standard:
10" (255mm)
Max. swing over bed:
20" (510mm)
Tool stations,lower:
8 KV STYLE
Tool stations,upper:
10 KV STYLE
X-axis travel,lower:
8.5" (215mm)
X-axis travel,upper:
8.5" (215mm)
Z-axis travel,lower:
24.4" (620mm)
Z-axis travel,upper:
24.4" (620mm)
Tailstock quill stroke:
3.9" (100mm)
Tailstock spindle taper:
MT#5
Tailstock spindle diameter:
3.5" (90mm)
Subcategory:
Cnc machines

Description

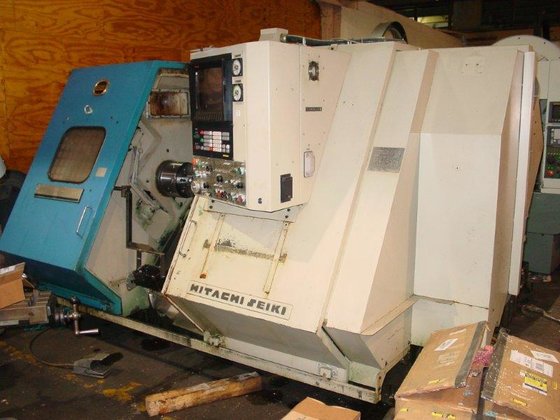

HITACHI SEIKI 4-AXIS CNC LATHE
MODEL: HT-25D NEW: 1988
SPECIFICATIONS:
MAX. SWING OVER BED ............... 20" (510mm)
CHUCK SIZE STANDARD ............... 10" (255mm)
SHAFT LENGTH ...................... 24" (600mm)
BAR CAPACITY ...................... 2.5" (63mm)
SPINDLE NOSE ...................... A2-8
HOLE THRU SPINDLE ................. 2.8" (70.5mm)
SPINDLE SPEED ..................... 20-3600 RPM
RAPID TRAVERSE X/Z ................ 315/472 IPM
X-AXIS TRAVEL,UPPER ............... 8.5" (215mm)
Z-AXIS TRAVEL,UPPER ............... 24.4" (620mm)
TOOL STATIONS,UPPER ............... 10 KV STYLE
TOOL SIZE ......................... 1" (25mm)
X-AXIS TRAVEL,LOWER ............... 8.5" (215mm)
Z-AXIS TRAVEL,LOWER ............... 24.4" (620mm)
TOOL STATIONS,LOWER ............... 8 KV STYLE
TOOL SIZE OD/ID ................... 1" (25mm)/1.5" (40mm)
TAILSTOCK QUILL STROKE ............ 3.9" (100mm)
TAILSTOCK SPINDLE DIAMETER ........ 3.5" (90mm)
TAILSTOCK SPINDLE TAPER ........... MT#5
MAIN MOTOR ........................ 35HP AC (26kw)
APPROX. WEIGHT .................... 12,760lbs. (5800kg)
EQUIPPED WITH:
- FANUC 11TT CNC CONTROL
- RED CAP SERVOS
- 10" 3-JAW HYD. CHUCK
- Q-SETTER
- 10 POSITION UPPER & 8 POSITION LOWER TURRETS
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
