122" WIDTH 0.55" THICKNESS Baileigh PR-10500-4NC BENDING ROLL, 1/2" x 10' 4-Roll N/C Bending Roll Made in Italy in Harrison, NJ, USA

Top Seller
122" WIDTH 0.55" THICKNESS Baileigh
Harrison, NJ, USA
$123,695 (USD)


Stock number:
Age info:
Bending rolls
Subcategory 2:
New bending rolls


MODEL: PR-10500-4NC
Made in Italy

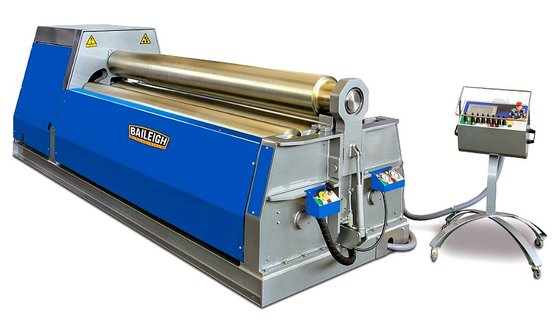

PR-10500-4NC numerically controlled four roll plate bending machine is the next
step in production plate rolling. This 10 foot ½” mild steel machine features a
new and evolved numerical control with the following features. This new easy to
use touch screen controller has the ability to control three bending axis (X Y
Z), two side supports, central support, and the pinching action. It can also
store 300 programs with 99 steps each; this is great for those odd shaped jobs
that come about.
What make a 4 roll plate roll so great? A 4 roll machine is the easiest,
quickest, rolling machine to operate thanks to its ability to pinch the plate
between the 2 central driven rolls, pre-bend the leading edge, and rolling the
body of the part along with the trailing edge all in one direction and in one
pass. There is no chance to lose the position of the plate due to being pinched
at all times during the rolling cycle.
The 2 central driven rolls on the PR-10500-4NC are rotated by hydraulic motors
and high efficiency planetary gearboxes coupled directly to the rolls. This
hydraulic gearbox is driven by a large 10hp motor that operates on 480volt three
phase power.
• 1/2" mild steel capacity
• 120’’ Length
• 4 Forming Rolls
• 2 Direct-Driven Rolls
• Moveable Console with three axis NC control
• Storage for 300 programs with space for up to 99 steps in each program
• Touch screen control for the hydraulic material removal system is standard
• Epicyclical Gear Boxes
• Hardened and Polished Rolls
• Conical Bending System
• Torsion Bars for Perfect Parallelism
• Planetary Movement of Side Rolls
Rolling Cap. (Mild Steel) .55"
Forming Width 122"
Number of Rolls 4
Driven Rolls 2
Top Roll Dia. 11.4"
Bottom Roll Dia. 10.6"
Slide Roll Dia. 8.2"
Roll Adjustment Hydraulic
Programming Nexus NC System
Motor 10 hp.
Power 480V / 3-phase
Shipping Weight 17,600 lbs.
Shipping Dimensions 176" x 58" x 39"
PRICE: $123,695
