Top Seller
110 Ton 11.75" Throat Edwards
Location:
Harrison, NJ
Price:
$25,496 USD
Manufacturer:
Edwards
Model:
Elite 110 *Made in the USA*
Capacity:
1-3/8" Dia. in 1" A36
Weight:
5380 lb.

Specifications

Condition:
new
Stock number:
153112
Depth:
42-3/8"
Width:
57-1/4"
Height:
66-1/16"
Rating:
110 Tons
Stroke:
1-13/16"
Age info:
NEW
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
8-5/8"
Shut height:
6-13/16"
Work height:
41"
Throat depth:
11-3/4"
Max. capacity:
1-3/8" Dia. in 1" A36
Work height 2:
41-1/2"
Work height 3:
50-7/8"
Work height 4:
44-3/16"
Work height 5:
39-3/16"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Standard motor:
7.5 HP 3~ 208 V or 230 V
Throat depth 2:
15-1/2"
Valve pressure:
3000 PSI
Max. capacity 2:
3/4" x 14"
Max. capacity 3:
6" x 6" x 1/2"
Max. capacity 4:
2-1/2" x 6" x 1/2"
Optional motors:
7.5 HP 3~ 460 V
Shipping weight:
5380 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW EDWARDS ELITE 110 IRONWORKER
*Made in the USA*
The Edwards ELITE 110 Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers.
Standard features of the ELITE 110 include a Punch Assembly, Flat Bar Shear, Angle Shear and a universal open tooling station for optional Tooling Accessories. Integrated hydraulic accessory ports enable your ELITE 110 to act as a power source for our expanding line of innovative Hydraulic Accessory Tools.

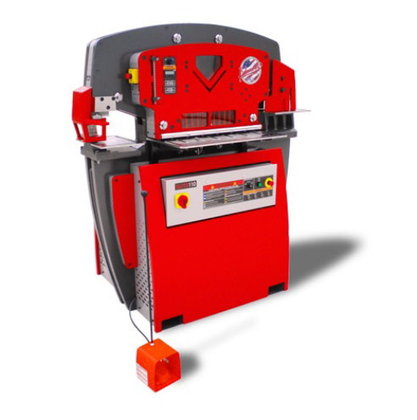

[Shown with optional Coper Notcher tooling]
FEATURES:
Universal Open Tooling Station
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
Hydraulic Hold-Down
E-Stop / Lockout-Tagout
Electric Stroke Control
Hydraulic Accessory Pack
Central Lubrication System
Swing-Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Premium Gauging Tables
LED Lighting
SPECIFICATIONS:
PUNCH
Rating ....................................... 110 Tons
Max. Capacity ................................ 1-3/8" Dia. in 1" A36
Stroke ....................................... 1-13/16"
Throat Depth ................................. 11-3/4"
Open Height .................................. 8-5/8"
Shut Height .................................. 6-13/16"
Work Height .................................. 41"
FLAT BAR SHEAR
Max. Capacity ................................ 3/4" x 14"
................................ 1" x 12"
Max. Round ................................... 1-1/4"
Max. Square .................................. 1-1/4"
Work Height .................................. 41-1/2"
ANGLE SHEAR
Max. Capacity ................................ 6" x 6" x 1/2"
Work Height .................................. 50-7/8"
OPTIONAL COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 6" x 1/2"
Work Height .................................. 44-3/16"
OPEN STATION
Throat Depth ................................. 15-1/2"
Open Height .................................. 8-5/8"
Shut Height .................................. 6-13/16"
Stroke ....................................... 1-13/16"
Work Height .................................. 39-3/16"
GENERAL SPECIFICATIONS
Standard Motor ............................... 7.5 HP 3~ 208 V or 230 V
............................... 1765 RPM 22 A
Optional Motors .............................. 7.5 HP 3~ 460 V
.............................. 1765 RPM 11 A
.............................. 7.5 HP 3~ 575 V
.............................. 1770 RPM 8 A
.............................. 7.5 HP 1~ 230 V
.............................. 1765 RPM 36 A
Hydraulic Pump ............................... 10-1/2 GPM - 2 Stage
Valve Pressure ............................... 3000 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 3-1/2" Ram
DIMENSIONS
Height ....................................... 66-1/16"
Width ........................................ 57-1/4"
Depth ..................
