Top Seller
110 Ton 17.75" Throat Edwards
Location:
Harrison, NJ
Price:
$34,296 USD
Manufacturer:
Edwards
Model:
Elite 110-65 Dual Operator *Made in the USA*
Capacity:
1-3/8" Dia. in 1" A36
Weight:
8580 lb.

Specifications

Condition:
new
Stock number:
153113
Depth:
44-7/8"
Width:
11-3/4"
Height:
9"
Rating:
110 Tons
Stroke:
3"
Width 2:
91-9/16"
Age info:
NEW
Height 2:
65-1/8"
Rating 2:
65 Tons
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
9-3/4"
Shut height:
6-9/16"
Work height:
37-1/2"
Throat depth:
17-3/4"
Max. capacity:
1-3/8" Dia. in 1" A36
Work height 2:
33-1/2"
Work height 3:
44"
Work height 4:
35-5/8"
Work height 5:
40-7/8"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Standard motor:
7.5 HP 3~ 208 V or 230 V
Valve pressure:
3000 PSI
Max. capacity 2:
3/8" x 24"
Max. capacity 3:
5" x 5" x 3/8"
Max. capacity 4:
2-1/2" x 6" x 3/8"
Optional motors:
7.5 HP 3~ 460 V
Shipping weight:
8580 lb.
Cylinder (punch side):
7-1/2" Bore / 3" Ram
Cylinder (shear side):
6" Bore / 3-1/2" Ram
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

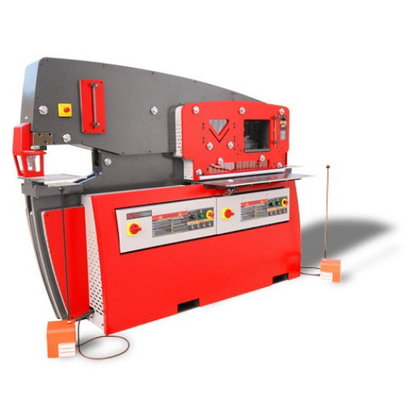

NEW EDWARDS ELITE 110-65 DUAL OPERATOR IRONWORKER
*Made in the USA*
Designed for simultaneous use by two people, the Edwards ELITE 110|65 Ironworker is the most powerful of the new ELITE line. It features a standard Punch Assembly, 24" wide Flat Bar Shear, Angle Shear, a dedicated Coper Notcher and a universal open tooling station for optional Tooling Accessories.
The integrated Hydraulic Accessory Pack enables your ELITE 110|65 to act as a power source for our expanding line of innovative Hydraulic Accessory Tools.
[Shown with optional Pipe Notcher tooling]
FEATURES:
Five Workstations
Two Independent Power Plants
Super-size Punch Throat Depth of 17-3/4"
Universal Open Tooling Cavity
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
Hydraulic Hold-Down
E-Stop / Lockout-Tagout
Electric Stroke Control
Hydraulic Accessory Pack
Central Lubrication System
Swing-Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Premium Gauging Tables
LED Lighting
SPECIFICATIONS:
PUNCH
Rating ....................................... 110 Tons
Max. Capacity ................................ 1-3/8" Dia. in 1" A36
Stroke ....................................... 3"
Throat Depth ................................. 17-3/4"
Open Height .................................. 9-3/4"
Shut Height .................................. 6-9/16"
Work Height .................................. 37-1/2"
FLAT BAR SHEAR
Rating ....................................... 65 Tons
Max. Capacity ................................ 3/8" x 24"
................................ 1/2" x 14"
................................ 1" x 4"
Max. Round ................................... 1"
Max. Square .................................. 1"
Work Height .................................. 33-1/2"
ANGLE SHEAR
Max. Capacity ................................ 5" x 5" x 3/8"
Work Height .................................. 44"
COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 6" x 3/8"
Work Height .................................. 35-5/8"
OPEN CAVITY
Height ....................................... 9"
Width ........................................ 11-3/4"
Work Height .................................. 40-7/8"
GENERAL SPECIFICATIONS
Standard Motor ............................... 7.5 HP 3~ 208 V or 230 V
............................... 1765 RPM 22 A
Optional Motors .............................. 7.5 HP 3~ 460 V
.............................. 1765 RPM 11 A
.............................. 7.5 HP 3~ 575 V
.............................. 1770 RPM 8 A
.............................. 7.5 HP 1~ 230 V
.............................. 1765 RPM 36 A
Hydraulic Pump ............................... 10-1/2 GPM - 2 Stage
Valve Pressure ............................... 3000 PSI
Reservoir .................................... 17 Gallons
Cylinder (Punch Side) ........................ 7-1/2" Bore / 3" Ram
Cylinder (Shear Side) ........................ 6" Bore / 3-1/2" Ram
DIMENSIONS
Height ......................
