40 Ton 7" Throat Edwards
Location:
Harrison, NJ
Price:
$7,796 USD
Manufacturer:
Edwards
Model:
40 Ton *Made in the USA*
Capacity:
1" Dia. in 1/2" A36
Weight:
1900 lb.

Specifications

Condition:
new
Stock number:
153115
Depth:
23"
Width:
32"
Height:
60-1/2"
Rating:
40 Tons
Stroke:
1-3/8"
Age info:
NEW
Cylinder:
8-1/2" - 2-1/2" Ram
Reservoir:
7 Gallons
Open height:
8"
Shut height:
6-5/8"
Work height:
41-1/2"
Throat depth:
7"
Max. capacity:
1" Dia. in 1/2" A36
Work height 2:
52-1/2"
Work height 3:
33-1/2"
Work height 4:
35-3/4"
Hydraulic pump:
3-1/2 GPM - 1 Stage
Standard motor:
5 HP 3~ 208 V or 230 V
Throat depth 2:
7-3/4"
Valve pressure:
2750 PSI
Max. capacity 2:
3" x 3" x 1/4"
Max. capacity 3:
3/8" x 10"
Max. capacity 4:
2" x 3" x 5/16"
Optional motors:
5 HP 3~ 460 V
Shipping weight:
1900 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

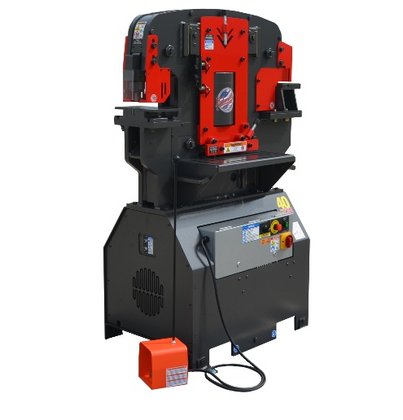

NEW EDWARDS 40 TON IRONWORKER
*Made in the USA*
Designed for small to medium-sized fab shops, the Edwards 40 Ton JAWS Ironworker has the tools to get the job done. Standard features include a Punch Assembly with Pedestal Die Table, 10" wide Flat Bar Shear, Angle Shear and a universal open tooling station to accept optional Tooling Accessories.
Multiply the utility of your 40 Ton by adding the optional Hydraulic Accessory Pack and your Ironworker becomes the power source for our expanding line of innovative Hydraulic Accessory Tools such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Four Available Workstations
Universal Open Tooling Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 40 Tons
Max. Capacity ................................ 1" Dia. in 1/2" A36
Stroke ....................................... 1-3/8"
Throat Depth ................................. 7"
Open Height .................................. 8"
Shut Height .................................. 6-5/8"
Work Height .................................. 41-1/2"
ANGLE SHEAR
Max. Capacity ................................ 3" x 3" x 1/4"
Work Height .................................. 52-1/2"
FLAT BAR SHEAR
Max. Capacity ................................ 3/8" x 10"
................................ 1/2" x 6"
Work Height .................................. 33-1/2"
OPTIONAL COPER NOTCHER
Max. Capacity ................................ 2" x 3" x 5/16"
Work Height .................................. 35-3/4"
OPEN STATION
Stroke ....................................... 1-3/8"
Throat Depth ................................. 7-3/4"
Open Height .................................. 8"
Shut Height .................................. 6-5/8"
Work Height .................................. 35-3/4"
GENERAL SPECIFICATIONS
Standard Motor ............................... 5 HP 3~ 208 V or 230 V
............................... 1725 RPM 14 A
Optional Motors .............................. 5 HP 3~ 460 V
.............................. 1725 RPM 7 A
.............................. 5 HP 3~ 575 V
.............................. 1725 RPM 6 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
Hydraulic Pump ............................... 3-1/2 GPM - 1 Stage
Valve Pressure ............................... 2750 PSI
Reservoir .................................... 7 Gallons
Cylinder ..................................... 8-1/2" - 2-1/2" Ram
DIMENSIONS
Height ....................................... 60-1/2"
Width ........................................ 32"
Depth ........................................ 23"
Shipping Weight .............................. 1900 lb.
View video of this model in action @
