Top Seller
50 Ton 7" Throat Edwards
Location:
Harrison, NJ
Price:
$8,896 USD
Manufacturer:
Edwards
Model:
50 Ton *Made in the USA*
Capacity:
1" Dia. in 5/8" A36
Weight:
2020 lb.

Specifications

Condition:
new
Stock number:
153121
Depth:
36-1/8"
Width:
36-3/4"
Height:
54-1/2"
Rating:
50 Tons
Stroke:
1-7/8"
Age info:
NEW
Cylinder:
2-1/2" Ram
Reservoir:
7 Gallons
Max. round:
3/4"
Max. square:
3/4"
Open height:
8-1/8"
Shut height:
6-1/4"
Work height:
36-9/16"
Throat depth:
7"
Max. capacity:
1" Dia. in 5/8" A36
Work height 2:
39-7/8"
Work height 3:
34-1/2"
Work height 4:
39-1/2"
Hydraulic pump:
3-1/2 GPM - 1 Stage
Standard motor:
5 HP 3~ 208 V or 230 V
Valve pressure:
2500 PSI
Max. capacity 2:
3" x 3" x 3/8"
Max. capacity 3:
1/2" x 10"
Max. capacity 4:
2" x 3" x 5/16"
Optional motors:
5 HP 3~ 460 V
Shipping weight:
2020 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

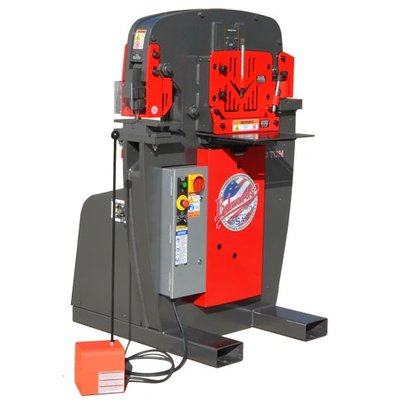

NEW EDWARDS 50 TON IRONWORKER
*Made in the USA*
The Edwards 50 Ton JAWS Ironworker is the ideal Ironworker for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
SPECIFICATIONS:
PUNCH
Rating ....................................... 50 Tons
Max. Capacity ................................ 1" Dia. in 5/8" A36
Stroke ....................................... 1-7/8"
Throat Depth ................................. 7"
Open Height .................................. 8-1/8"
Shut Height .................................. 6-1/4"
Work Height .................................. 36-9/16"
ANGLE SHEAR
Max. Capacity ................................ 3" x 3" x 3/8"
................................ 4" x 4" x 1/4"
Work Height .................................. 39-7/8"
FLAT BAR SHEAR
Max. Capacity ................................ 1/2" x 10"
................................ 3/4" x 4"
Max. Round ................................... 3/4"
Max. Square .................................. 3/4"
Work Height .................................. 34-1/2"
COPER NOTCHER
Max. Capacity ................................ 2" x 3" x 5/16"
Work Height .................................. 39-1/2"
GENERAL SPECIFICATIONS
Standard Motor ............................... 5 HP 3~ 208 V or 230 V
............................... 1725 RPM 14 A
Optional Motors .............................. 5 HP 3~ 460 V
.............................. 1725 RPM 7 A
.............................. 5 HP 3~ 575 V
.............................. 1725 RPM 6 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
Hydraulic Pump ............................... 3-1/2 GPM - 1 Stage
Valve Pressure ............................... 2500 PSI
Reservoir .................................... 7 Gallons
Cylinder ..................................... 2-1/2" Ram
DIMENSIONS
Height ....................................... 54-1/2"
Width ........................................ 36-3/4"
Depth ........................................ 36-1/8"
Shipping Weight .............................. 2020 lb.
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
