Top Seller
60 Ton 8.875" Throat Edwards
Location:
Harrison, NJ
Price:
$10,696 USD
Manufacturer:
Edwards
Model:
60 Ton *Made in the USA*
Capacity:
1" Dia. in 3/4" A36
Weight:
2550 lb.

Specifications

Condition:
new
Stock number:
153123
Depth:
36-1/8"
Width:
46-1/8"
Height:
56-1/8"
Rating:
60 Tons
Stroke:
1-1/4"
Age info:
NEW
Cylinder:
2-1/2" Ram
Reservoir:
7 Gallons
Max. round:
7/8"
Max. square:
7/8"
Open height:
8-1/8"
Shut height:
6-7/8"
Work height:
36-9/16"
Throat depth:
8-7/8"
Max. capacity:
1" Dia. in 3/4" A36
Work height 2:
39-7/8"
Work height 3:
34-1/2"
Work height 4:
39-1/2"
Hydraulic pump:
3-1/2 GPM - 1 Stage
Standard motor:
5 HP 3~ 208 V or 230 V
Valve pressure:
2500 PSI
Max. capacity 2:
3" x 3" x 1/2"
Max. capacity 3:
3/8" x 14"
Max. capacity 4:
2-1/2" x 4" x 3/8"
Optional motors:
5 HP 3~ 460 V
Shipping weight:
2550 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

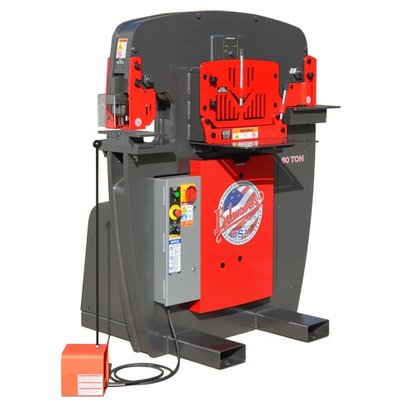

NEW EDWARDS 60 TON IRONWORKER
*Made in the USA*
The Edwards 60 Ton JAWS Ironworker is a robust machine featuring a dedicated Coper Notcher station, adding strength and stability to this great tool. Standard features include a Punch Assembly with Pedestal Die Table, 14" wide Flat Bar Shear, Angle Shear and Coper Notcher.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Four Loaded Workstations
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 60 Tons
Max. Capacity ................................ 1" Dia. in 3/4" A36
Stroke ....................................... 1-1/4"
Throat Depth ................................. 8-7/8"
Open Height .................................. 8-1/8"
Shut Height .................................. 6-7/8"
Work Height .................................. 36-9/16"
ANGLE SHEAR
Max. Capacity ................................ 3" x 3" x 1/2"
................................ 4" x 4" x 3/8"
Work Height .................................. 39-7/8"
FLAT BAR SHEAR
Max. Capacity ................................ 3/8" x 14"
................................ 1/2" x 12"
................................ 3/4" x 4"
Max. Round ................................... 7/8"
Max. Square .................................. 7/8"
Work Height .................................. 34-1/2"
COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 4" x 3/8"
Work Height .................................. 39-1/2"
GENERAL SPECIFICATIONS
Standard Motor ............................... 5 HP 3~ 208 V or 230 V
............................... 1725 RPM 14 A
Optional Motors .............................. 5 HP 3~ 460 V
.............................. 1725 RPM 7 A
.............................. 5 HP 3~ 575 V
.............................. 1725 RPM 6 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
Hydraulic Pump ............................... 3-1/2 GPM - 1 Stage
Valve Pressure ............................... 2500 PSI
Reservoir .................................... 7 Gallons
Cylinder ..................................... 2-1/2" Ram
DIMENSIONS
Height ....................................... 56-1/8"
Width ........................................ 46-1/8"
Depth ........................................ 36-1/8"
Shipping Weight .............................. 2550 lb.
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
