65 Ton 9.75" Throat Edwards
Location:
Harrison, NJ
Price:
$16,996 USD
Manufacturer:
Edwards
Model:
65 Ton *Made in the USA*
Capacity:
1-1/16" Dia. in 3/4" A36
Weight:
4750 lb.

Specifications

Condition:
new
Stock number:
153124
Depth:
45"
Width:
12"
Height:
8-3/4"
Rating:
65 Tons
Stroke:
1-13/16"
Width 2:
62-1/8"
Age info:
NEW
Cylinder:
3-1/2" Ram
Height 2:
57"
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
36-9/16"
Throat depth:
9-3/4"
Max. capacity:
1-1/16" Dia. in 3/4" A36
Work height 2:
43-1/2"
Work height 3:
34-1/2"
Work height 4:
39-1/2"
Work height 5:
43"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Standard motor:
7.5 HP 3~ 208 V or 230 V
Valve pressure:
3500 PSI
Max. capacity 2:
5" x 5" x 3/8"
Max. capacity 3:
3/8" x 24"
Max. capacity 4:
2-1/2" x 5" x 3/8"
Optional motors:
7.5 HP 3~ 460 V
Shipping weight:
4750 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

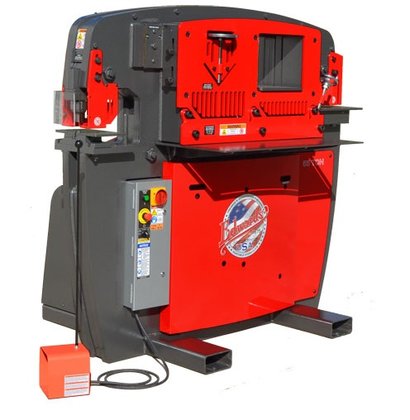

NEW EDWARDS 65 TON IRONWORKER
*Made in the USA*
The five workstations of the Edwards 65 Ton JAWS Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Five Available Workstations
Universal Open Tooling Station
24" Flat Bar Shear
Dedicated Coper Notcher
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 65 Tons
Max. Capacity ................................ 1-1/16" Dia. in 3/4" A36
Stroke ....................................... 1-13/16"
Throat Depth ................................. 9-3/4"
Open Height .................................. 8-3/4"
Shut Height .................................. 6-15/16"
Work Height .................................. 36-9/16"
ANGLE SHEAR
Max. Capacity ................................ 5" x 5" x 3/8"
Work Height .................................. 43-1/2"
FLAT BAR SHEAR
Max. Capacity ................................ 3/8" x 24"
................................ 1/2" x 14"
................................ 1" x 4"
Max. Round ................................... 1"
Max. Square .................................. 1"
Work Height .................................. 34-1/2"
COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 5" x 3/8"
Work Height .................................. 39-1/2"
OPEN CAVITY
Height ....................................... 8-3/4"
Width ........................................ 12"
Work Height .................................. 43"
GENERAL SPECIFICATIONS
Standard Motor ............................... 7.5 HP 3~ 208 V or 230 V
............................... 1765 RPM 22 A
Optional Motors .............................. 7.5 HP 3~ 460 V
.............................. 1765 RPM 11 A
.............................. 7.5 HP 3~ 575 V
.............................. 1770 RPM 8 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
.............................. 7.5 HP 1~ 230 V**
.............................. 1765 RPM 36 A**
**Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump ............................... 10-1/2 GPM - 2 Stage
Valve Pressure ............................... 3500 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 3-1/2" Ram
DIMENSIONS
Height ....................................... 57"
Width ........................................ 62-1/8"
Depth ........................................ 45"
Shipping Weight ...........
