Top Seller
75 Ton 10" Throat Edwards
Location:
Harrison, NJ
Price:
$15,996 USD
Manufacturer:
Edwards
Model:
75 Ton *Made in the USA*
Capacity:
1-1/16" Dia. in 7/8" A36
Weight:
4100 lb.

Specifications

Condition:
new
Stock number:
153131
Depth:
45"
Width:
50"
Height:
60-1/4"
Rating:
75 Tons
Stroke:
1-13/16"
Age info:
NEW
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
39-1/16"
Throat depth:
10"
Max. capacity:
1-1/16" Dia. in 7/8" A36
Work height 2:
43-15/16"
Work height 3:
37"
Work height 4:
42"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Standard motor:
7.5 HP 3~ 208 V or 230 V
Valve pressure:
3500 PSI
Max. capacity 2:
5" x 5" x 1/2"
Max. capacity 3:
1/2" x 14"
Max. capacity 4:
2-1/2" x 5" x 1/2"
Optional motors:
7.5 HP 3~ 460 V
Shipping weight:
4100 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

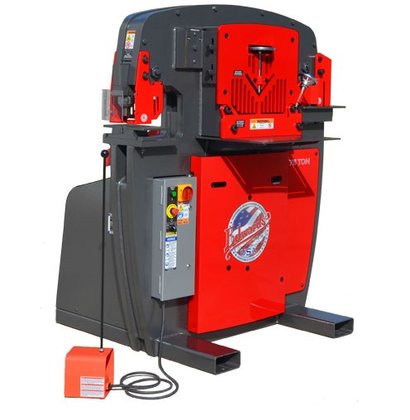

NEW EDWARDS 75 TON IRONWORKER
*Made in the USA*
The Edwards 75 Ton JAWS Ironworker offers you greater capacity to accomplish larger tasks. Its standard features include a Punch Assembly with Pedestal Die Table, a 14" wide Flat Bar Shear, Angle Shear and Coper Notcher. The Punch Assembly is easily converted to an open station designed to accept optional Tooling Accessories, allowing flexibility to customize your Ironworker according to your needs.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 75 Tons
Max. Capacity ................................ 1-1/16" Dia. in 7/8" A36
Stroke ....................................... 1-13/16"
Throat Depth ................................. 10"
Open Height .................................. 8-3/4"
Shut Height .................................. 6-15/16"
Work Height .................................. 39-1/16"
ANGLE SHEAR
Max. Capacity ................................ 5" x 5" x 1/2"
Work Height .................................. 43-15/16"
FLAT BAR SHEAR
Max. Capacity ................................ 1/2" x 14"
................................ 3/4" x 10"
Max. Round ................................... 1"
Max. Square .................................. 1"
Work Height .................................. 37"
COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 5" x 1/2"
Work Height .................................. 42"
GENERAL SPECIFICATIONS
Standard Motor ............................... 7.5 HP 3~ 208 V or 230 V
............................... 1765 RPM 22 A
Optional Motors .............................. 7.5 HP 3~ 460 V
.............................. 1765 RPM 11 A
.............................. 7.5 HP 3~ 575 V
.............................. 1770 RPM 8 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
.............................. 7.5 HP 1~ 230 V**
.............................. 1765 RPM 36 A**
**Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump ............................... 10-1/2 GPM - 2 Stage
Valve Pressure ............................... 3500 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 3-1/2" Ram
DIMENSIONS
Height ....................................... 60-1/4"
Width ........................................ 50"
Depth ........................................ 45"
Shipping Weight .............................. 4100 lb.
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
