Top Seller
100 Ton 11" Throat Edwards
Location:
Harrison, NJ
Price:
$18,496 USD
Manufacturer:
Edwards
Model:
100 Ton *Made in the USA*
Capacity:
1-1/16" Dia. in 1" A36
Weight:
4650 lb.

Specifications

Condition:
new
Stock number:
153132
Depth:
45"
Width:
56-1/8"
Height:
61-11/16"
Rating:
100 Tons
Stroke:
1-13/16"
Age info:
NEW
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
39-1/16"
Throat depth:
11"
Max. capacity:
1-1/16" Dia. in 1" A36
Work height 2:
43-15/16"
Work height 3:
37"
Work height 4:
42"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Standard motor:
7.5 HP 3~ 208 V or 230 V
Throat depth 2:
14-3/4"
Valve pressure:
3500 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
3/4" x 14"
Max. capacity 4:
2-1/2" x 6" x 1/2"
Optional motors:
7.5 HP 3~ 460 V
Shipping weight:
4650 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

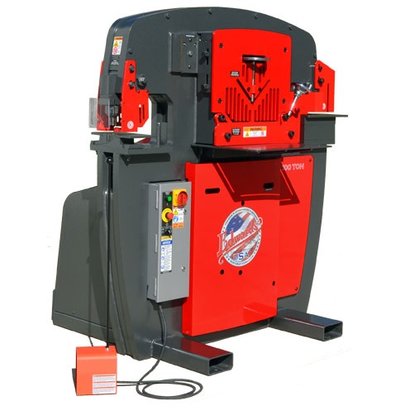

NEW EDWARDS 100 TON IRONWORKER
*Made in the USA*
If you're looking for versatility and power, the Edwards 100 Ton JAWS Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Four Available Workstations
High Capacity Angle Shear
Universal Open Tooling Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 100 Tons
Max. Capacity ................................ 1-1/16" Dia. in 1" A36
Stroke ....................................... 1-13/16"
Throat Depth ................................. 11"
Open Height .................................. 8-3/4"
Shut Height .................................. 6-15/16"
Work Height .................................. 39-1/16"
ANGLE SHEAR
Max. Capacity ................................ 6" x 6" x 1/2"
Work Height .................................. 43-15/16"
FLAT BAR SHEAR
Max. Capacity ................................ 3/4" x 14"
................................ 1" x 10"
Max. Round ................................... 1-1/4"
Max. Square .................................. 1-1/4"
Work Height .................................. 37"
OPTIONAL COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 6" x 1/2"
Work Height .................................. 42"
OPEN STATION
Throat Depth ................................. 14-3/4"
Open Height .................................. 8-3/4"
Shut Height .................................. 6-15/16"
Stroke ....................................... 1-13/16"
Work Height .................................. 37"
GENERAL SPECIFICATIONS
Standard Motor ............................... 7.5 HP 3~ 208 V or 230 V
............................... 1765 RPM 22 A
Optional Motors .............................. 7.5 HP 3~ 460 V
.............................. 1765 RPM 11 A
.............................. 7.5 HP 3~ 575 V
.............................. 1770 RPM 8 A
.............................. 5 HP 1~ 230 V
.............................. 1725 RPM 23 A
.............................. 7.5 HP 1~ 230 V**
.............................. 1765 RPM 36 A**
**Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump ............................... 10-1/2 GPM - 2 Stage
Valve Pressure ............................... 3500 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 3-1/2" Ram
DIMENSIONS
Height ....................................... 61-11/16"
Width ........................................ 56-1/8"
Depth ...................
