100 Ton 11" Throat Edwards
Location:
Harrison, NJ
Price:
$22,496 USD
Manufacturer:
Edwards
Model:
100 Ton Deluxe *Made in the USA*
Capacity:
1-1/16" Dia. in 1" A36
Weight:
5180 lb.

Specifications

Condition:
new
Stock number:
153133
Depth:
45-1/2"
Width:
56"
Height:
63-1/8"
Rating:
100 Tons
Stroke:
1-15/16"
Age info:
NEW
Cylinder:
2-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
8-3/4"
Shut height:
6-13/16"
Work height:
39-3/8"
Max. round 2:
1-1/2"
Throat depth:
11"
Max. capacity:
1-1/16" Dia. in 1" A36
Max. square 2:
1-1/4"
Work height 2:
43-15/16"
Work height 3:
37"
Work height 4:
42"
Work height 5:
54-1/2"
Hydraulic pump:
24 GPM
Standard motor:
10 HP 3~ 208 V or 230 V
Valve pressure:
3800 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
1/2" x 18"
Max. capacity 4:
2-1/2" x 6" x 1/2"
Optional motors:
10 HP 3~ 460 V
Shipping weight:
5180 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

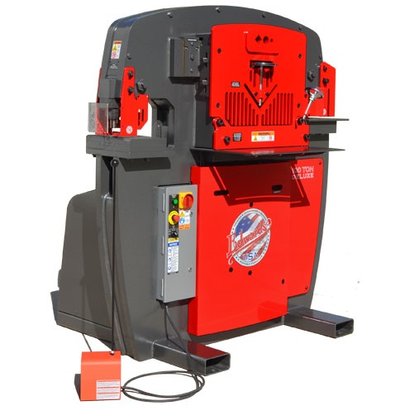

NEW EDWARDS 100 TON DELUXE IRONWORKER
*Made in the USA*
A brute of an Ironworker, the Edwards 100 Ton Deluxe JAWS Ironworker features super-duty construction and a powerful 10hp motor. Standard features include a Punch Assembly, 18" wide Flat Bar Shear, Angle Shear, Coper Notcher and a special built-in Rod Shear for solid square and round bar stock.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Five Loaded Workstations
Built-in Rod Shear for Square and Round Bar
18" Flat Bar Shear
Dedicated Coper Notcher
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 100 Tons
Max. Capacity ................................ 1-1/16" Dia. in 1" A36
Stroke ....................................... 1-15/16"
Throat Depth ................................. 11"
Open Height .................................. 8-3/4"
Shut Height .................................. 6-13/16"
Work Height .................................. 39-3/8"
ANGLE SHEAR
Max. Capacity ................................ 6" x 6" x 1/2"
Work Height .................................. 43-15/16"
FLAT BAR SHEAR
Max. Capacity ................................ 1/2" x 18"
................................ 3/4" x 14"
................................ 1" x 10"
Max. Round ................................... 1"
Max. Square .................................. 1"
Work Height .................................. 37"
COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 6" x 1/2"
Work Height .................................. 42"
ROD SHEAR
Max. Round ................................... 1-1/2"
Max. Square .................................. 1-1/4"
Work Height .................................. 54-1/2"
GENERAL SPECIFICATIONS
Standard Motor ............................... 10 HP 3~ 208 V or 230 V
............................... 1770 RPM 26 A
Optional Motors .............................. 10 HP 3~ 460 V
.............................. 1770 RPM 12 A
.............................. 10 HP 3~ 575 V
.............................. 1770 RPM 10 A
.............................. 10 HP 1~ 230 V
.............................. 1740 RPM 40 A
Hydraulic Pump ............................... 24 GPM
Valve Pressure ............................... 3800 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 2-1/2" Ram
DIMENSIONS
Height ....................................... 63-1/8"
Width ........................................ 56"
Depth ........................................ 45-1/2"
Shipping Weight .............................. 5180 lb.
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
