Top Seller
120 Ton 11" Throat Edwards
Location:
Harrison, NJ
Price:
$24,796 USD
Manufacturer:
Edwards
Model:
120 Ton *Made in the USA*
Capacity:
1-1/2" Dia. in 1" A36
Weight:
5500 lb.

Specifications

Condition:
new
Stock number:
153151
Depth:
60"
Width:
11-3/4"
Height:
9"
Rating:
120 Tons
Stroke:
2-1/2"
Width 2:
60"
Age info:
NEW
Cylinder:
2-3/4" Ram
Height 2:
84"
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
9-1/8"
Shut height:
7"
Work height:
36-5/8"
Throat depth:
11"
Max. capacity:
1-1/2" Dia. in 1" A36
Work height 2:
52-1/2"
Work height 3:
33-1/4"
Work height 4:
40"
Work height 5:
51-3/4"
Hydraulic pump:
24 GPM
Standard motor:
10 HP 3~ 208 V or 230 V
Valve pressure:
3800 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
1/2" x 24"
Max. capacity 4:
2-1/2" x 6" x 1/2"
Optional motors:
10 HP 3~ 460 V
Shipping weight:
5500 lb.
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

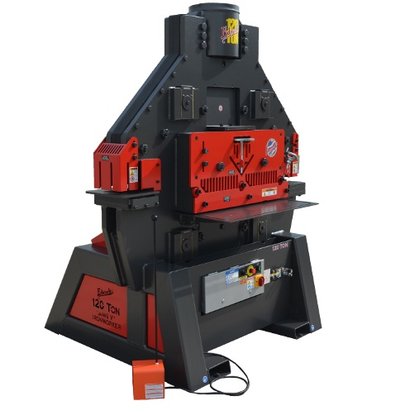

NEW EDWARDS 120 TON IRONWORKER
*Made in the USA*
Our most powerful Ironworker, the Edwards 120 Ton JAWS Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
FEATURES:
Five Available Workstations
Universal Open Tooling Station
24" Flat Bar Shear
Dedicated Coper Notcher
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
SPECIFICATIONS:
PUNCH
Rating ....................................... 120 Tons
Max. Capacity ................................ 1-1/2" Dia. in 1" A36
Stroke ....................................... 2-1/2"
Throat Depth ................................. 11"
Open Height .................................. 9-1/8"
Shut Height .................................. 7"
Work Height .................................. 36-5/8"
ANGLE SHEAR
Max. Capacity ................................ 6" x 6" x 1/2"
Work Height .................................. 52-1/2"
FLAT BAR SHEAR
Max. Capacity ................................ 1/2" x 24"
................................ 1" x 12"
Max. Round ................................... 1-1/4"
Max. Square .................................. 1-1/4"
Work Height .................................. 33-1/4"
OPTIONAL COPER NOTCHER
Max. Capacity ................................ 2-1/2" x 6" x 1/2"
Work Height .................................. 40"
OPEN CAVITY
Height ....................................... 9"
Width ........................................ 11-3/4"
Work Height .................................. 51-3/4"
GENERAL SPECIFICATIONS
Standard Motor ............................... 10 HP 3~ 208 V or 230 V
............................... 1770 RPM 26 A
Optional Motors .............................. 10 HP 3~ 460 V
.............................. 1770 RPM 12 A
.............................. 10 HP 3~ 575 V
.............................. 1770 RPM 10 A
.............................. 10 HP 1~ 230 V
.............................. 1740 RPM 40 A
Hydraulic Pump ............................... 24 GPM
Valve Pressure ............................... 3800 PSI
Reservoir .................................... 17 Gallons
Cylinder ..................................... 2-3/4" Ram
DIMENSIONS
Height ....................................... 84"
Width ........................................ 60"
Depth ........................................ 60"
Shipping Weight .............................. 5500 lb.
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
