1980 25 Ton 10" Stroke
Location:
Harrison, NJ
Price:
$5,450 USD
Manufacturer:
Dake presses
Model:
5-025
Capacity:
25 TONS

Specifications

Condition:
used
Year:
1980
Serial number:
178961
Stock number:
153099
Rpm:
1,800 RPM
Capacity:
25 TONS
Dimension:
43-1/2" X 36" X 85"
Horsepower:
2 H.P.
Ram travel:
10"
Ram speed – press:
14 IPM
Maximum ram to table:
40"
Minimum ram to table:
5"
Ram speed – advance:
80 IPM
Approx. machine weight:
1,000 LBS.
Width between uprights:
32-3/4"
Horizontal workhead travel:
14-3/8"
Width between table channels:
7-1/4"

Description

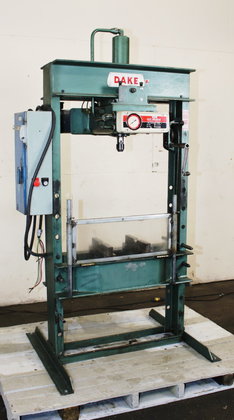

DAKE “ELEC-DRAULIC I” HYDRAULIC H-FRAME PRESS
MODEL 05-025 S/N 178961 NEW 1980
CAPACITY .............................. 25 TONS
HORSEPOWER ............................ 2 H.P.
RPM ................................... 1,800 RPM
RAM SPEED – ADVANCE .................... 80 IPM
RAM SPEED – PRESS ...................... 14 IPM
WIDTH BETWEEN UPRIGHTS ................ 32-3/4"
WIDTH BETWEEN TABLE CHANNELS .......... 7-1/4"
MINIMUM RAM TO TABLE .................. 5"
MAXIMUM RAM TO TABLE .................. 40"
RAM TRAVEL ............................ 10"
HORIZONTAL WORKHEAD TRAVEL ............ 14-3/8"
APPROX. MACHINE WEIGHT ................ 1,000 LBS.
DIMENSION ............................. 43-1/2" X 36" X 85"
FEATURES:
- ELECTRIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
- RAPID RAM APPROACH QUICKLY MOVES RAM TO WORK TO SAVE PRODUCTION TIME
- MOVABLE WORKHEAD IS ROLLER MOUNTED ON BALL BEARINGS FOR OFF-CENTER WORK
- SAFETY VALVE PROTECTS AGAINST OVERLOADS
- ADJUSTABLE TABLE PERMITS EASY VERTICAL MOVEMENT BY MEANS OF SELF-LOCKING HOIST
- SINGLE-ACTION CYLINDER PROVIDES FAST, RELIABLE PRESSING & INTERNAL SPRING RETURN
- VARIABLE RAM SPEED ALLOWS FINGERTIP CONTROL OF RAM MOVEMENT FOR PRECISE PRESSURE CONTROL
- RAPID RAM RETURN STARTS RAM RETURN AS SOON AS RELEASE VALVE IS OPENED AND MAY BE
STOPPED AT ANY POINT BY CLOSING THE VALVE
- STROKE INDICATOR ENSURES ACCURATE RAM CONTROL
- V-BLOCKS (AS SHOWN)
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
