1980 Skytop Brewster 4610 600
United States
4610 600 Rig Package


Stock number:
Southern Region, USA
Drill rigs
Subcategory 2:
Water well drill rigs


Skytop RR 600 Drill Rig
4610 D/D Drilling Unit,
LEBUS Grooved f/1" Line,
PARMAC 22" SR Hydromatic Brake,
SKYTOP 110'H, 275,000# SHL Telescoping Mast,
Crown Block w/(4) 30" Sheaves,
36" Sheave,
24" Deadline Sheave,
Racking Board,
4"ID Standpipe,
3-1/2" Rotary Hose,
Climbing Device,
Fluorescent Rig Lights,

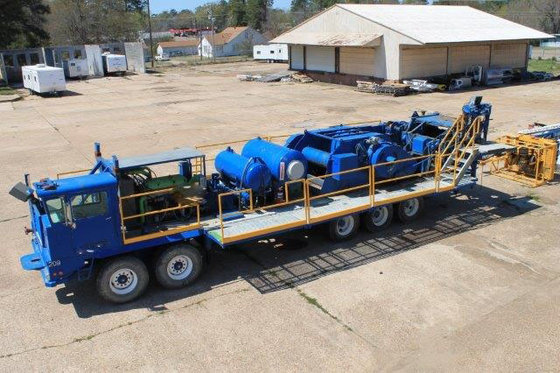

All Mounted on a SKYTOP-BREWSTER RR-600 5-Axle Back-In Carrier,
p/b DETROIT Series 60 Diesel Engine,
ALLISON 5860 Transmission,
(2) Hyd Utility Winches,
(4) Hyd Leveling Jacks,
425/65R22.5 Front & 11R22.5 Rear Tires,
Budd Wheels
Spare Parts for drill rig:
Drawworks Sprocket off driller side,
Drum Clutch Drive Ring and pressure plates,
2 Sets of brake bands,
Brake Blocks,
Sand line Drum complete with clutch assy
IDECO UTB 165-Ton "Shorty" Block/Hook Combo w/(4) 30" Sheaves f/1" Line, 2-1/2" x 96"L Elevator Links
Weight indicator
PSC Shallow Production Wt Indicator, 400,000 lbs Capacity, w/Diaphragm
#1Substructure/Cat Walk
8'H x 8'W x 14'L T-Type Substructure w/(2) 40"W Folding Walkways, 24"H x 8'6"W x 26'L Attached Back-On Ramp, 34"H x 7'W x 35'L Catwalk
Rotary Table with Substructure #1
BREWSTER RSH-18 18" x 44" Rotary Table w/Split Master Bushing
#2 Substructure (W 5th Wheel & Dolly/Cat Walk
12'10"H x 8'W x 15'L Box-Type Sub w/Rotary Beams, Rotary Elevated Drive Box, 6'W & 4'W Cantilevered Walkways & 9'L Detachable T/A Dolly, Gooseneck, 255/70R22.5 Tires, Budd Wheels, 10'W x 12"H x 43'L Rig Base w/14'L Hinged Sub Board & Base Beam flush mount rotary table
Rotary Table with Substructure #2
SENTRY S1275 27-1/2" x 53" Rotary Table w/Split Master Bushing
Drillers House/Fuel/ Lockers
8'W x 22'L Driller's Doghouse/Fuel Tank Combo w/Knowledge Box, Lockers, Bench Storage, GEOLOGRAPH 2-Pen Recorder, 8'W x 7'H x 10'L 3000-Gal Fuel Tank, Skidded, Auto Driller, satellite auto driller,
Generator House
(One) CAT LC5 225KW GenSet p/b CAT C-9 @ 369HP Diesel Engine, w/Elec Starter, Radiator, Gauges, Skidded, CUMMINS 80KW Power GenSet p/b CUMMINS 4.5L @ 145HP Diesel Engine, w/Elec Starter, Radiator, Gauges,
Skidded, Mtd in 8'W x 28'L Generator House w/SQUARE D 75 KVA Transformer, Elec Panels, (6) 1" Steel Flex Hoses, (4) Mercury Vapor Rig Lights, Skidded
Triplex Mud Pumps
(2) IDECO T-800 TRIPLEX MUD PUMPS w/9" stroke, each unitized on a single mounted skid,
Triplex Mud Pumps Power by
(2) Caterpillar D-398 Diesel Engines
Mud Pits
(2) Shale and Suction mud pit approx 500 BBL Capacity
Parts House with spares parts
7'6"W x 37'L Parts House w/Built-In Water Tank, Parts Bins, Cabinets, SCHRADER BRIDGEPORT 5HP Air Compressor, 60-Gal Vertical Air Tank, 3-Compartment Lubester, Skidded, misc spare parts
Water Tank 8'W x 7'H x 34'L Open Top Water Tank, Skidded
Swivel/Kelly/Kelly Drive Bushing
GARDNER-DENVER SW-125 125-Ton Swivel w/5-1/4" Hex Kelly, VARCO HD Drive Bushing
Handling Tools
WEB WILSON Type B Tongs w/Heads , misc handling tools
Pipe Boxes
7'6"W x 30"H x 34'L Pipe Box w/Drawworks Powered Rathole Digger & Misc components
