Location:
Mifflinburg, PA
Manufacturer:
Foremost Barber
Model:
DR12 / 36 Drill Rig

Specifications

Condition:
used
Year:
1995
Stock number:
157
Status:
Available
Quantity:
1
Subcategory:
Drill rigs
Subcategory 2:
Water well drill rigs

Description

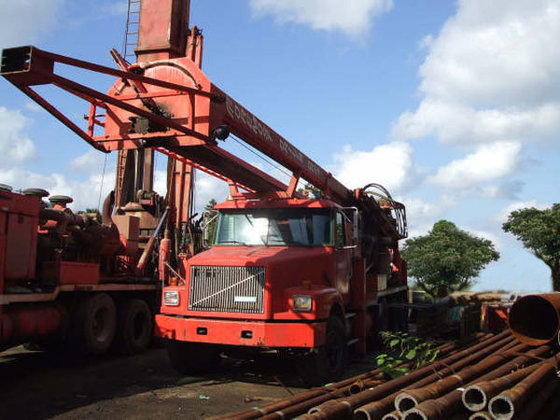

1995 Foremost Barber DR12/36 drill rig
Sullair 1150 CFM / 350 PSI Air Compressor
Cummins KTA19 Diesel Deck Engine (2 Stage) - 600 HP @ 2100 RPM
Cat 12 GPM triplex water injection pump @ 600 psi
Lower Rotary Casing Drive
Opening : 24.7" (627mm)
Stroke : 12' (3 660mm)
Rotation : 0-22rpm
Torque(max) : 1,000,000 ., (113 000Nm)
Hoist Capacity : 72,000 lbs (33,000kg)
combined with top drive  108,000 lb (49,000kg)
Pull Down Capacity : 33,000 lbs (15,000kg)
Top Drive
Stroke : 26' (7 930mm)
Rotation : 0-90 rpm
Torque(max) : 84,000 lbs. in., (9 470Nm)
Hoist Capacity : 37,400 (17,000kg)
Pull Down Capacity : 16,500lb (7,500kg)
Hoist Speed : 0-64 ft./min (0-20m/min)
Jib Boom / Winch: Pullmaster M5 winch with 120' ft of wire rope single line pull of 6,000 lbs
Mounted on a Volvo GMC truck
Cummins L10 Diesel Engine at 300 HP @ 2100 RPM
Transmission : Fuller RTX11708LL
10" inch drill pipes (100 meters availiable for an extra cost)
Accessories at an Extra Cost:  Drill Pipe (4 1/2" x 30'...
