1992 CHIRON FZ 18 S in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
CHIRON
Model:
FZ 18 S

Specifications

Condition:
used
Year:
1992
Stock number:
108768

Description

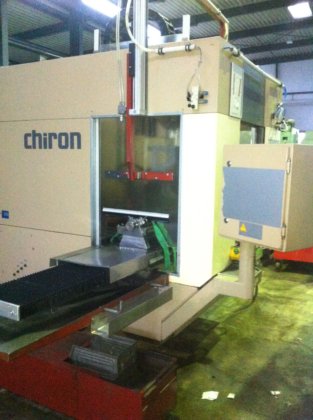

Vert. Machining center CHIRON Type FZ 18 S
Machine ID: 413-16 Year of manufacture 1992
Technical specifications:
Travel distance X: 550 mm
Travel Y: 300 mm
Travel Z: 425 mm
Throat: 310 mm
Distance spindle - table: 190 - 615 mm
Working surface: 950 x 370 mm
Table load: 500 kg
Spindle mount: ISA 40
Stepless spindle speeds: 20 - 6000 rpm.
Feed rates of all 3 axes infinitely up to: 4000 mm / min.
Rapid traverse all 3 axes: 20 m / min.
Number of tools: 12
Max. Tool diameter: 65/120 mm
Max. Tool length: 220 mm
Drive spindle: 9,4 kW
Ges. Inst. Power: 23 kW
Weight approx .: 2,8 t
Outside dimensions approx .: 2300 x 1600 x 3000 mm
With
- CNC control Siemens Sinumerik 810 M
- Sliding table mounted on table
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
