1996 THERMAL FLUID SYSTEMS KH-0.315/50
Location:
United States
Price:
$43,750 USD
Manufacturer:
THERMAL FLUID SYSTEMS
Model:
KH-0.315/50

Specifications

Condition:
used
Year:
1996
Recnum:
BD-010240
Comments:
1.26 Mill. BTU/Hr Output Hot Water System from THERMAL FLUID SYSTEM!
Machtype:
BOILER, HOT WATER
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Appr. repl. cost:
120000

Description

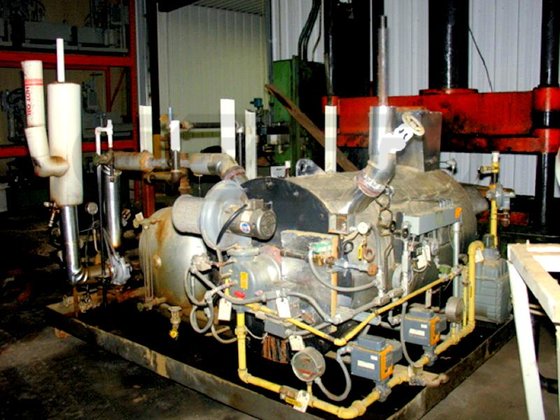

THERMAL FLUID SYSTEMS "KH 0.315/50" Hot Water Boiler, 1.26 Million BTU/Hour Output.Specifications & Description:

-- Natural Gas 572° F max. temp.; 60 GPM rated flow, 57 GPM min. flow; Gas supply pressure of 5 - 7 PSI.

-- MAXON Burner “400 OvenPack II�.

-- HONEYWELL “UDC 3000 VERSA PRO� Universal Digital Controller.

-- HONEYWELL “MODUTROL IV� Motors (#M7248).

-- HONEYWELL Solid-state Spark Generator, high/low gas pressure switches, and flame detection.Equipped & Supplied with:

-- (2) Safety shut-off valves; 150 Lbs max. pressure; 150 gallon volume (system volume approx. 210 gallons).

-- Blower with 0.75 HP motor.

-- Expansion Tank - WENDLAND MFG: National board #1633; 50 PSI @ 650° F.Dimensions & Weight:

-- Tank dimensions are 60� L x 18� dia.; overall dimensions of tank including stand are 80� L x 44� W x 84� H;

-- Control Panel dimensions are 48� x 18� x 80�;

-- Heater dims. (drip pan) are 96� x 132� x 84�. - Weighs approx. 12,000 Lbs.

-- Manuals and prints included.
