Location:
Bensenville, IL
Manufacturer:
Johansing Iron Works

Specifications

Condition:
used
Stock number:
46566001
Sqft:
37
Mounted:
Side Lug Mounted
Tubemtl:
316L SS
Shellmtl:
Carbon Steel
Year built:
2008
Tube length:
7' 10-3/8"
Tube material:
316L Stainless Steel
Tube pressure:
150/FV psi
Shell material:
Carbon Steel
Shell pressure:
150 psi
Square footage:
37
Tube temperature:
330 degrees F
Overal dimensions:
132"L X 24"W X 24"T
Shell temperature:
170 degrees F
National board no.:
1187
Size of tube openings:
(1) 3", (1) 2", (2) 1-1/2"
Horizontal or vertical:
Vertical
Size of shell openings:
2"
Number of tube openings:
4
Number of shell openings:
2

Description

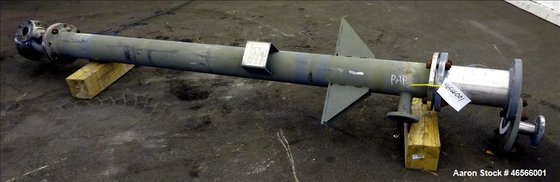

46566001 Used- Johansing Iron Works Shell & Tube Heat Exchanger, Approximately 37 Square Feet, Vertical. Carbon steel shell rated 150 psi at 170 degrees F. (24) 316L Stainless steel 3/4" diameter x 7'-10-3/8" long tubes rated at 150/FV psi at 330 degrees F. Hastelloy C-276 tubesheet. (1) 316L stainless steel head, (1) Hastelloy C-276 head. Openings tubes: (1) 3", (1) 2", (2) 1-1/2", shell: (2) 2". Side lug mounted. Serial# 6296. National Board# 1187. Year 2008.
