1980 JOHANNSEN MS 86 - 1500 in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Model:
MS 86 - 1500

Specifications

Condition:
used
Year:
1980
Stock number:
108326
Subcategory:
Grinders

Description

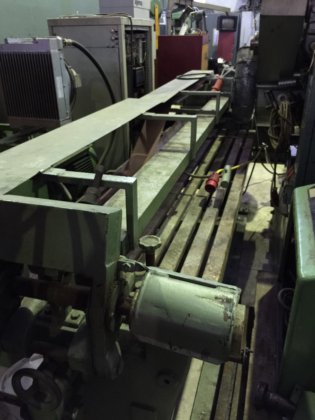

Broadband Grinding Machine Manufacturer JOHANNSEN Type MS 86 - 1500
Serial number: 14421 Year of manufacture 1980
Technical specifications:
Sheet width: 200 - 1500 mm
Sheet thickness: 0.6-10 mm
Sheet metal length: at least 500 mm - infinity
Table feed - Feed speed: 3,4 - 17 m / min.
Max. Table stroke: 20 mm
Number of grinding belt stations: 2
Grinding belt size: 2500 x 1600 mm
Belt speed: 17.25 m / sec.
Size of the contact rollers: 1580 x 250 mm
Drive power of the grinding belt: 2 x 22 kW
Total power input: 47.5 kW
Outside dimensions approx .: 2270 x 2600 x 2078 mm
With
- pneum. belt tension
- Dust extraction
- Export and import rolls
- sep. Electric control cabinet
second hand
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
And are always at your disposal for your questions.
Best regards
M. Waldeck
