8" Width 18" Length Clausing
Location:
Harrison, NJ
Price:
$24,495 USD
Model:
CSG818A SDIIl
Grinding Length:
19" (480mm)
Weight:
2,657 lbs (1205kg)

Specifications

Condition:
new
Stock number:
153496
Bore:
1.25" (31.75mm)
Width:
5" (12.7mm) max .75" (19mm)
Model 2:
CSG818A DSIII
Age info:
NEW
Diameter:
8" (203mm)
Standard:
18" (460mm)
Net weight:
2,657 lbs (1205kg)
Table size:
8" x 18" (203 x 460mm)
Speed (rpm):
3450
Gross weight:
3,031 lbs (1375kg)
Power rating:
2 Hp (1.5kw)
Step feed (jog):
00004" (0.001mm)
Automatic infeed:
00005"-.0025" (0.001 - 0.05mm)
Packing dimensions:
75" x 56" x 76" (1890 x 1430 x 1930mm)
Rapid travel approx:
10"(250mm)/min
Rated power, approx:
3 Hp (2.3kw)
Slow travel, approx:
236"(6mm)/min
Max. travel (manual):
20" (510mm)
Max. travel (hydraulic):
19" (480mm)
Handwheel per graduation:
0.0008" (0.02mm)
Handwheel per revolution:
0.2" (5mm)
Auto transverse increment:
04 - .4" (1-10mm)
Auto constant feeding speed:
79"-12.6" (20-320mm)/min.
Max. auto transverse travel:
9.25" (235mm)
Standard magnetic chuck size:
8" x 18" (200 x 450mm)
Total space required (lxwxh):
71" x 50.6" x 66" (1810 x 1285 x 1680mm)
Max. manual transverse travel:
9.84" (250mm)
Crossfeed motor (power rating):
350W
Elevating motor (power rating):
40W
Hydraulic motor (power rating):
1 Hp (.75kw)
Max. grinding width (crosswise):
9" (228mm)
Table speed infinitely variable:
196"-.984"/min. (5-25m/min.)
Max. grinding length (longitudinal):
19" (480mm)

Description

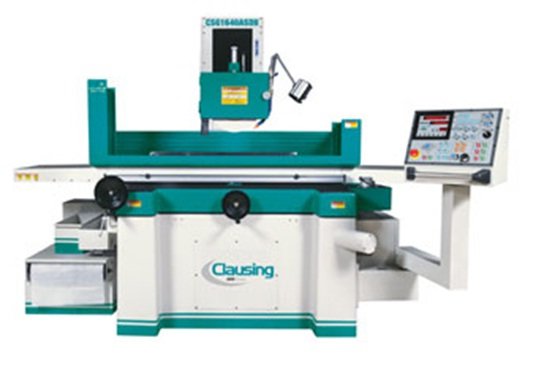

NEW CLAUSING 8" x 18" PRECISION AUTOMATIC SURFACE GRINDER
MODEL: CSG818A DSIII
STANDARD FEATURES:
-On ASDlll models, you can set the vertical zero point, start point, finish grinding volume, target point and the grinding wheel rise-up point
-The machine features a simple and clear digital display & touch control panel for easy learning and operation
-Vertical feed powered by dual motors, AC motor for rapid up / down and stepping motor for micro downfeed positioning, slow auto downfeed and slow up / down
-Vertical positioning is displayed on the screen showing present spindle and setting the start point, rough grinding volume, finish grinding volume, downfeed volume for finish grinding, target point, rise up point, intermittent spark-out
-Cross transverse travel powered by DC servo motor, allows step feed and continuous infeed grinding
-The speed of wheel dressing can be adjusted on the control panel
-High quality, ribbed, cast iron table, saddle and base
-All slideways and screws are fully oiled by an automatic continuous lubrication system to minimize wear on slideways & screws
-High Grade Anti-Wear Slideways... The saddle rides on precision, hand-scraped double V ways, and the table rides on precision hand-scraped V and flat ways coated with "TURCITE-B"
-Precision spindle cartridge, supported by preloaded precision angular contact ball bearings and one NN type roller bearing on 618 & 818 models
-Ballscrew for cross travel, powered by DC servo motor
SPECIFICATIONS:
Table Size .................................................. 8" x 18" (203 x 460mm)
Max. grinding length (longitudinal) ......................... 19" (480mm)
Max. grinding width (crosswise) ............................. 9" (228mm)
Max. distance from table surface to spindle centerline
Standard ................................................... 18" (460mm)
Optional ................................................... -
Standard magnetic chuck size ................................ 8" x 18" (200 x 450mm)
Longitudinal movement of table
Max. travel (hydraulic) ..................................... 19" (480mm)
Max. travel (manual) ........................................ 20" (510mm)
Table speed infinitely variable ............................. .196"-.984"/min. (5-25m/min.)
Crossfeed transverse travel
Auto transverse increment ................................... .04 - .4" (1-10mm)
Auto constant feeding speed ................................. .79"-12.6" (20-320mm)/min.
Max. auto transverse travel ................................. 9.25" (235mm)
Max. manual transverse travel ............................... 9.84" (250mm)
Handwheel per revolution .................................... 0.2" (5mm)
Handwheel per graduation .................................... 0.0008" (0.02mm)
Wheelhead vertical downfeed
Automatic infeed ............................................ .00005"-.0025" (0.001 - 0.05mm)
Step feed (JOG) ............................................. .00004" (0.001mm)
Rapid travel approx. .....
