1997 10" Swing 20" Centers
Location:
Harrison, NJ
Manufacturer:
K O Lee
Model:
C1020 L2
Weight:
3,450 LBS

Specifications

Condition:
used
Year:
1997
Serial number:
s80bs2576-2-97
Stock number:
153212
Motor:
5 HP
Swing:
10"
Swivel:
135 DEG
Feed rate:
0.1" TO 150" IPM
Feed rate 2:
0.1" TO 75" IPM
Center taper:
#5 MT
Repeatability:
=/- 0.0001"
Table swivels:
+/- 10 DEG
Maximum travel:
7-1/2"
Hole thru spindle:
1.3" ID
Control resolution:
0.00002"
Grinding wheel size:
14" X 1-1/2" X 5" BORE
Approx. machine weight:
3,450 LBS
Distance between centers:
20"
Handwheel index graduated:
0.0001"
Maximum longitudinal table travel:
24"

Description

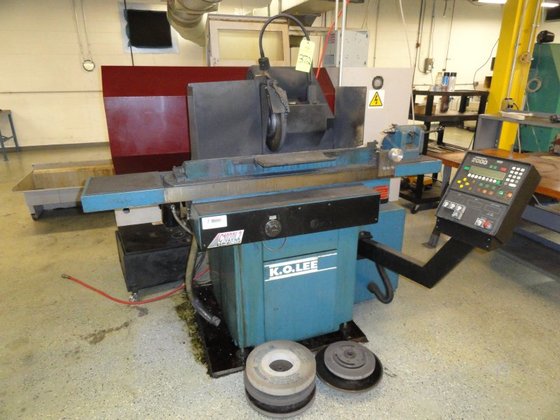

10" X 20" K.O. LEE (MADE IN USA)
PLAIN "SUPER-PRECISION" CYLINDRICAL GRINDER
** LEEMATIC 2000 CNC CONTROL FOR TABLE
TRAVERSE& INFEED **
MODEL: C1020 L2 S/N: S80BS2576-2-97 NEW: 1997
CAPACITY:
SWING ........................................... 10"
DISTANCE BETWEEN CENTERS ........................ 20"
TABLE SWIVELS ............................ +/- 10 DEG
MAXIMUM LONGITUDINAL TABLE TRAVEL ............... 24"
FEED RATE .......................... 0.1" TO 150" IPM
WORK HEAD:
SWIVEL ...................................... 135 DEG
SPINDLE SPEEDS, INF. VARIABLE FROM .... 35 TO 700 RPM
HOLE THRU SPINDLE ........................... 1.3" ID
CENTER TAPER .................................. #5 MT
CROSSFEED:
FEED RATE ........................... 0.1" TO 75" IPM
MAXIMUM TRAVEL ............................... 7-1/2"
HANDWHEEL INDEX GRADUATED ................... 0.0001"
CONTROL RESOLUTION ......................... 0.00002"
REPEATABILITY ...........................=/- 0.0001"
WHEELHEAD:
GRINDING WHEEL SIZE .......... 14" X 1-1/2" X 5" BORE
MOTOR .......................................... 5 HP
APPROX. MACHINE WEIGHT ...................... 3,450 LBS
APPROX. FLOOR SPACE REQUIRED FOR OPERATION .. 96" X 75"
EQUIPPED WITH:
LEEMATIC 2000 (PENDANT MOUNTED) CONTROL ALLOWING
PUSH-BUTTON CONTROL OF BOTH TABLE& INFEED SERVO-MOTOR
AXIS. BOTH AXIS ARE BALLSCREW DRIVEN WITH CLOSED LOOP
FEEDBACK FOR ACCURACY. BUILT-IN PROGRAMS INCLUDE
CYLINDRICAL, STEP, SHOULDER & PLUNGE GRINDING CYCLES.
IN ADDITION, FULL IN-CYCLE WHEEL DRESSING WITH
AUTOMATIC WHEEL DRESS COMPENSATION IS PROVIDED.
CAST IRON CONSTRUCTION
WORKHEAD & TAILSTOCK
COOLANT SYSTEM
** I.D. ATTACHMENT AVAILABLE FROM K.O. LEE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) ***
