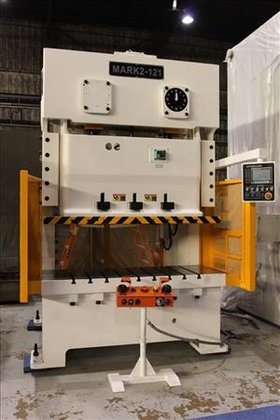

SUTHERLAND MARK 2-121 DOUBLE CRANK
Location:
United States
Manufacturer:
SUTHERLAND
Model:
MARK 2-121 DOUBLE CRANK GAP FRAME PRESS
Capacity:
110 Metric Ton
Stroke:
35 - 65 SPM

Specifications

Condition:
used
Terms:
F.O.B.
Weight:
10884 Kg
Capacity:
110 Metric Ton
Adjustment:
100mm
Dimensions:
2388mm x 2261mm x 3200mm
Main motor:
7.46 kw
Slide area:
1550mm (L-R) x 500mm (F-B)
Bolster area:
1800mm (L-R) x 650mm (F-B)
Stroke speed:
35 - 65 SPM
Stroke length:
180mm
Bolster thickness:
130mm
Die height (sdau):
400mm
Air pressure required:
6.0 kgs./

Description

I-Press Control
