Top Seller

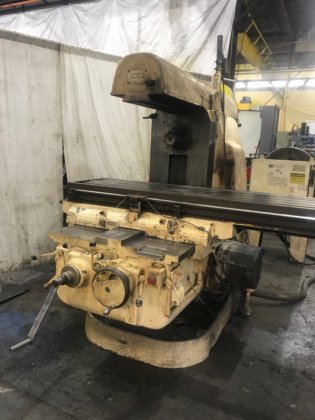

Cincinnati 5LD #5 HORIZONTAL MILL
Location:
Holland, OH
Manufacturer:
Cincinnati
Model:
5LD

Specifications

Condition:
used
Stock number:
63428
Serial:
3JP5D-56-R-78
Coolant:
YES
Year new:
1978
Feed motor:
7-1/2 HORSEPOWER
Main motor:
50 HORSEPOWER
Cross travel:
16"
Area of table:
94-1/2" X 20"
Dual controls:
YES
Rapid traverse:
150 IPM
Spindle speeds:
(24) 14 TO 1400 RPM
Vertical feeds:
(32) 1/8 TO 30 IPM
Vertical travel:
20"
Rapid traverse 2:
YES
Taper in spindle:
50NS
Longitudinal travel:
50"
2 axis digital readouts:
NEWALL C-70
Distance spindle to table:
0" MIN. TO 21" MAXIMUM
Longitudinal & cross feeds:
(32) 3/8 TO 90 IPM
Subcategory:
Mills

Description

SERIAL ............................. 3JP5D-56-R-78
MODEL .............................. 5LD
YEAR NEW ........................... 1978
AREA OF TABLE ...................... 94-1/2" X 20"
SPINDLE SPEEDS ..................... (24) 14 TO 1400 RPM
LONGITUDINAL TRAVEL ................ 50"
CROSS TRAVEL ....................... 16"
VERTICAL TRAVEL .................... 20"
TAPER IN SPINDLE ................... 50NS
DISTANCE SPINDLE TO TABLE .......... 0" MIN. TO 21" MAXIMUM
LONGITUDINAL & CROSS FEEDS ......... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ..................... (32) 1/8 TO 30 IPM
RAPID TRAVERSE ..................... 150 IPM
DUAL CONTROLS ...................... YES
2 AXIS DIGITAL READOUTS ............ NEWALL C-70
COOLANT ............................ YES
RAPID TRAVERSE ..................... YES
FEED MOTOR ......................... 7-1/2 HORSEPOWER
MAIN MOTOR ......................... 50 HORSEPOWER
