Top Seller
2008 59" X Axis 27.5"
Location:
Harrison, NJ
Price:
$59,500 USD
Model:
SV-6030
Spindle Taper:
CAT40

Specifications

Condition:
used
Year:
2008
Serial number:
61000121
Stock number:
153325
Table size:
69.3" X 27.6" 1760X700mm
Spindle drive:
DIRECT DRIVE
Spindle motor:
15/20 HP
Spindle speed:
10,000 RPM
Spindle taper:
CAT40
X-axis travel:
59" 1500mm
Y-axis travel:
29.9" 760mm
Z-axis travel:
27" 680mm
Machine weight:
24,200 LBS
Spindle torque:
75 FT-LB @ 1400 RPM
Machine dimensions:
38" X 126" X 124"
Table load capacity:
5500 LBS
Rapid traverse rates:
787 IPM
Tool magazine capacity:
32 ATC SIDE MOUNT
Subcategory:
Cnc machines

Description

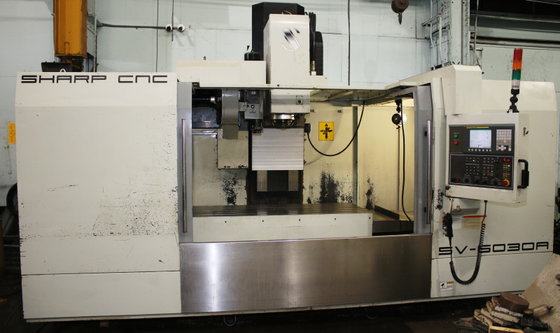

SHARP CNC VERTICAL MACHINING CENTER
MODEL: SV-6030, S/N: 61000121, MFG: 2008
SPECIFICATIONS:
X-AXIS TRAVEL ................... 59" 1500mm
Y-AXIS TRAVEL ................... 29.9" 760mm
Z-AXIS TRAVEL ................... 27" 680mm
SPINDLE SPEED ................... 10,000 RPM
SPINDLE MOTOR ................... 15/20 HP
SPINDLE DRIVE ................... DIRECT DRIVE
SPINDLE TORQUE .................. 75 FT-LB @ 1400 RPM
SPINDLE TAPER ................... CAT40
TOOL MAGAZINE CAPACITY .......... 32 ATC SIDE MOUNT
MAXIMUM TOOL DIAMETER/WEIGHT .... 3.9 / 15 LBS
(ADJACENT TTOOL POCKET)
RAPID TRAVERSE RATES ............ 787 IPM
TABLE SIZE ...................... 69.3" X 27.6" 1760X700mm
TABLE LOAD CAPACITY ............. 5500 LBS
MACHINE DIMENSIONS .............. 38" X 126" X 124"
MACHINE WEIGHT .................. 24,200 LBS
EQUIPED WITH:
FANUC 0I-MC
CONTROL
10,OOO RPM SPINDLE
SPINDLE CHILLER
REMOTE JOG HANDLE
32 POSITION AUTOMATIC TOOLCHANGER
HARDENED AND GROUND BOX WAYS ALL AXIS
CHIP CONVEYOR
COOLANT SYSTEM
ALL AVAILABLE MANUALS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
