Top Seller
2001 Haas SL-30T CNC LATHE,
Location:
Harrison, NJ
Price:
$32,500 USD
Manufacturer:
Haas lathes
Distance between Centers:
39"
Spindle Nose:
A2-6

Specifications

Condition:
used
Year:
2001
Serial number:
64130
Stock number:
153371
New:
2001
Turret:
12 POS
Chuck size:
10"
Spindle nose:
A2-6
Serial number:
56442
Spindle motor:
20 HP
Machine weight:
16,000 LBS
Rapid traverse:
710 IPM
Bar feeder size:
8' X 4 1/2'
Swing over cross slide:
14.5"
Swing over front apron:
30"
Distance between centers:
39"
Standard bore / bar capacity:
3.5"/ 3"
Approx. dims w/ chip conveyor:
162"x77"x74"
Maximum cutting diameter x length:
17" X 34"
Subcategory:
Cnc machines

Description

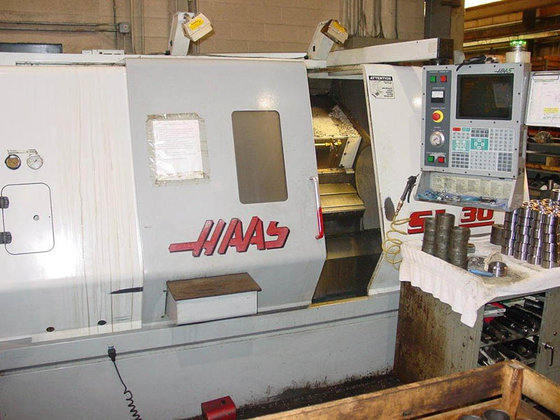

HAAS SL-30T CNC TURNING CENTER WITH BAR-FEEDER
NEW: 2001
Serial Number: 56442
SWING OVER FRONT APRON....................... 30"
SWING OVER CROSS SLIDE....................... 14.5"
CHUCK SIZE................................... 10"
STANDARD BORE / BAR CAPACITY................. 3.5"/ 3"
DISTANCE BETWEEN CENTERS..................... 39"
MAXIMUM CUTTING DIAMETER X LENGTH............ 17" X 34"
SPINDLE SPEEDS (OPTIONAL 2-SPEED GEARBOX).... 3,400 RPM
SPINDLE MOTOR................................ 20 HP
SPINDLE NOSE................................. A2-6
TURRET....................................... 12 POS
RAPID TRAVERSE............................... 710 IPM
MACHINE WEIGHT............................... 16,000 LBS
APPROX. DIMS W/ CHIP CONVEYOR................ 162"x77"x74"
BAR FEEDER SIZE.............................. 8' X 4 1/2'
EQUIPPED WITH:
* HAAS CNC CONTROL
* HAAS SERVO BAR 300 AUTOMATIC BAR FEEDER - UP TO 3 1/8" BAR CAP
* PROGRAMABLE HYDRAULIC TAILSTOCK
* TOOL PRESETTER
* AUTO DOOR
* PARTS CATCHER
* HIGH INTENSITY LIGHTING
INSPECT UNDER POWER IN EAST COAST PLANT
