1986 Cincinnati-Milacron No. 2 MT
Location:
Harrison, NJ
Model:
No. 2 MT
Weight:
3,000 LBS

Specifications

Condition:
used
Year:
1986
Serial number:
39906-86
Stock number:
153490
Table size:
6" X 36"
Table swivel:
180 DEG.
Approximate dimensions:
3' X 38"D X 5'H
Saws on table diameter:
48"
Cross movement of table:
10"
Longitudinal table travel:
16"
Swing over table diameter:
10"
Approximate machine weight:
3,000 LBS
Face mills on workhead diameter:
10"

Description

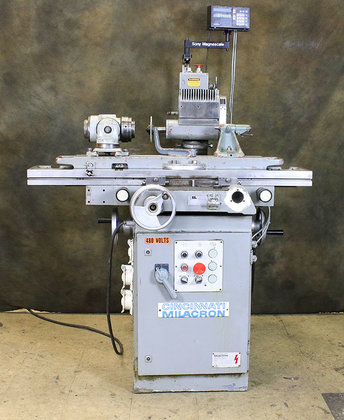

#2 CINCINNATI-MILACRON UNIVERSAL TOOL & CUTTER GRINDER
MODEL: MT S/N: 39906-86-04-19 NEW: 1986
CAPACITY:
SWING OVER TABLE DIAMETER ............................ 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ......... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ................. 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER ...................... 10"
FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. ..... 18"
SAWS ON TABLE DIAMETER ............................... 48"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER ............. 10"
RANGE:
TABLE SIZE ........................................... 6" X 36"
LONGITUDINAL TABLE TRAVEL ............................ 16"
CROSS MOVEMENT OF TABLE .............................. 10"
TABLE SWIVEL ......................................... 180 DEG.
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ......... 5"
FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) ...... 2"
TABLE GRADUATIONS IN CENTER, IN DEGREES .............. 90 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE .......... 10-1/2"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ............ 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER ................. 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ............ 360 DEG.
SPINDLE SPEEDS:
6" WHEEL, SURFACE SPEED 6,022 FT./MIN. ............... 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. ............... 6,425 RPM
APPROXIMATE MACHINE WEIGHT ........................... 3,000 LBS
APPROXIMATE DIMENSIONS ............................... 3' X 38"D X 5'H
MACHINE FEATURES:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
AVAILABLE TO PURCHASE SEPERATELY FOR THIS MACHINE::
-CINCINNATI MOTORIZED WORKHEAD ($1,750)
-CINCINNATI NON-MOTORIZED WORKHEAD ($750)
-SET OF CINCINNATI MILACRON TAILSTOCKS ($450)
-VISE, MOUNTED ON A FIXTURE THAT SWIVELS IN THREE PLANES
($650)
-"HYBCO" MODEL #2100-SB FORM RELIEVING FIXTURE, ($3,950)
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - MADE IN ENGLAND BY CINCINNATI MILACRON **
