Top Seller

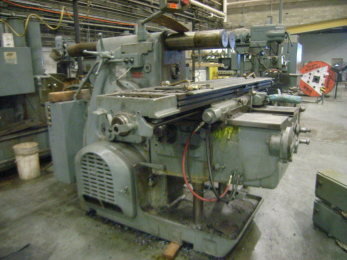

Kearney & Trecker 430TF-17 #430-17TH
Location:
Holland, OH
Manufacturer:
Kearney & Trecker
Model:
430TF-17

Specifications

Condition:
used
Stock number:
63495
Serial:
56-1006
Coolant:
YES
Main motor:
30 HORSEPOWER
Cross travel:
14"
Dual controls:
YES
Power draw bar:
YES
Rapid traverse:
150 IPM
Spindle speeds:
(24) 15 TO 1500 RPM
Traverse motor:
3 HORSEPOWER
Taper in spindle:
#50 NS
Longitudinal travel:
42"
Vertical knee travel:
18"
Vertical table feeds:
(32) 1/8 TO 30 IPM
Area of table (t-slotted):
80" X 17"
Subcategory:
Mill

Description

SERIAL .............................. 56-1006
MODEL ............................... 430TF-17
AREA OF TABLE (T-SLOTTED) ........... 80" X 17"
SPINDLE SPEEDS ...................... (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS TABLE FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL TABLE FEEDS ................ (32) 1/8 TO 30 IPM
LONGITUDINAL TRAVEL ................. 42"
CROSS TRAVEL ........................ 14"
VERTICAL KNEE TRAVEL ................ 18"
RAPID TRAVERSE ...................... 150 IPM
TAPER IN SPINDLE .................... #50 NS
POWER DRAW BAR ...................... YES
DUAL CONTROLS ....................... YES
COOLANT ............................. YES
MAIN MOTOR .......................... 30 HORSEPOWER
TRAVERSE MOTOR ...................... 3 HORSEPOWER
