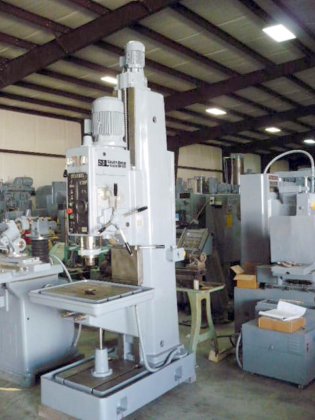

Southbend Ibrarmia Geared Head Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Southbend
Model:
B-70 P

Specifications

Condition:
used
Stock number:
D481010
Coolant:
Yes
Main motor:
7.5 Hp. 440 / 220 /3
Table size:
26" X 31"
Geared head:
Yes
Spindle feeds:
.0039 To .0236 IPR.
Spindle taper:
#5 Morse
Condition info:
Very Good
Drill capacity:
2-1/4"
Machine height:
122"
Machine weight:
4,800 Lbs.
Spindle speeds:
62 To 1,120 Rpm's
Spindle travel:
10.25"
Elevating table:
Yes
T-slotted work table:
Yes
Approximate dimensions:
28" X 47"
Vertical travel of table:
24"
Power head elevating motor:
Yes
Spindle to table top maximum:
47"
Center of spindle to box column:
16-3/4"
Category:
Drills
Subcategory:
Upright

Description

Table Size 26" X 31"
Vertical Travel Of Table 24"
Spindle Travel 10.25"
Spindle Taper #5 Morse
Spindle Speeds 62 To 1,120 Rpm's
Spindle Feeds .0039 To .0236 IPR.
Center Of Spindle To Box Column 16-3/4"
Spindle To Table Top Maximum 47"
Main Motor 7.5 Hp.
Machine Weight 3,800 Lbs.
Approximate Dimensions 28" X 47"
Machine Height 122"
Elevating Table Yes
Geared Head Yes
T-Slotted Work Table Yes
Power Head Elevating Motor Yes
Collant Yes
Note: Machine Has Been Cleaned, Painted And
Cycled
Condition Excellent
