1972 7-roll tube straightening machine

1972 7-roll tube straightening machine KIESERLING VRUN 75 in Willich, Germany

Location:
Willich, Germany
Manufacturer:
KIESERLING
Model:
VRUN 75

Specifications

Condition:
used
Year:
1972
Stock number:
1132-103365
Speed:
m/min
State:
Used machine
Control:
konventionell
Division:
Metal Processing
More info:
On request
Quotation:
free on truck
Tube length:
7000 - 8000 mm
Working area:
12 -75 mm
Delivery time:
to be discussed
Country of origin:
Germany

Description

7-roll tube and bar straightening machine
constr.: Kieserling
type: VRUN 75
Year: 1972
working range:
tube: 12-75 mm Ø
rod: 12-60 mm Ø
Material length: up to 7 - 8 meters
All upper straightening rollers are motorized adjustable.
main motor: 30 kW, 380 V, 50 Hz, 1470 rpm
upper adjustment motors: 5 x 0.55kW, 220/380 V
pinch rolls : 2 x 3 kW, 220/380 V, 1420 rpm
The system is suitable for straightening black and
bright bars and tubes of iron or non-ferrous metals.

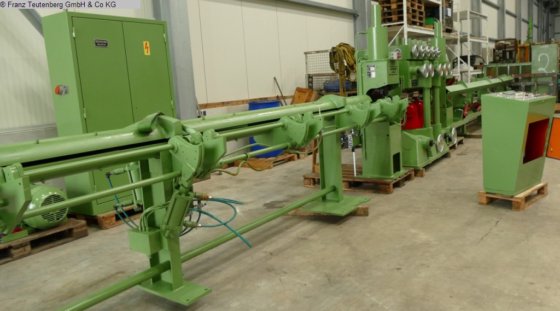

The line consists of:
- inlet table
- inlet roller channel with bar separation
- inlet duo
- straightening machine
- 3-step gear box
- drive motor
- outlet duo
- outlet roller channel
- collecting rack (8 supports)
- electrical cabinet
- command desk
