Location:
Contamine-sur-Arve, France
Manufacturer:
WILLEMIN MACODEL
Model:
W418

Specifications

Condition:
used
Year:
1997
Stock number:
7896P
Weight:
2500 [kg]
Magasin:
48
Type tools:
ISO 25
Floor space:
3.5 [sqm]
Cross stroke:
250 [mm]
Vertical stroke:
400 [mm]
Axe movement c, b:
360 , 110 [°]
Max. spindle speed:
18.000 [rpm]
Longitudinal stroke:
500 [mm]
Quick feed speed axes x, y, z:
20 [m/min.]
Subcategory:
Milling

Description

Details :

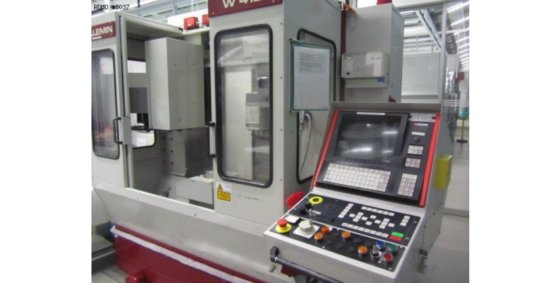

5 axes directional head machine.

TECHNICAL DETAILS
Longitudinal stroke : 500 [mm]
Cross stroke : 250 [mm]
Vertical stroke : 400 [mm]
Quick feed speed axes X, Y, Z : 20 [m/min.]
Axe movement C, B : 360 , 110 [°]
Magasin : 48
Max. spindle speed : 18.000 [rpm]
Type tools : ISO 25
Weight : 2500 [kg]
Floor space : 3.5 [sqm]

EQUIPMENT
CN NUM 1050
Spindle cooling station
Cooling device for oil
Blohm Laser system for tool setting and breakage detection
Spindle ISO 25
Elbaron oil mist extractor
30 tool holders
2 vices
Various tools
