Location:
Des Plaines, IL
Manufacturer:
Ooya
Model:

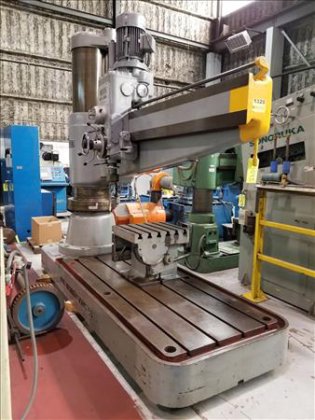

RE3-2500 RADIAL ARM DRILL
Capacity:
3"

Specifications

Condition:
used
Year:
2010
Stock number:
33545
Feed:
.0015 IPM - .125 IPM
Motor:
15 HP
Speed:
20 - 2180 RPM
Arm length:
8'
Spindle taper:
#5 MT
Column diameter:
19"
Distance base to spindle:
22-1/4" - 70-7/8"
Drilling capacity (steel):
3"
Drilling capacity (cast iron):
3-5/8"
Distance column to spindle center:
16-1/2" - 99-1/4"
Subcategory:
Drills, radial

Description

Equipped With
Drill/Tap
Electric Clamping to Head/Column and Arm
Tilting Box Table
Coolant System
T-Slotted Base
Dimensions and Weight
0"x 0"x 0"
0mm x 0mm x 0mm
0
0 Kg
