2003 COSTA KKA CCT CCT
Location:
Poland
Price:
$50,803 USD
Manufacturer:
Costa
Model:
KKA CCT CCT 1350
Elect./Voltage:
400 V, 50/60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
2003
Recnum:
SX-012149
Comments:
Exceptional value at a great price. Costa is one of the best.
Machtype:
WIDE BELT (3-HEAD BOTTOM & 3-HEAD TOP)
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
0

Description

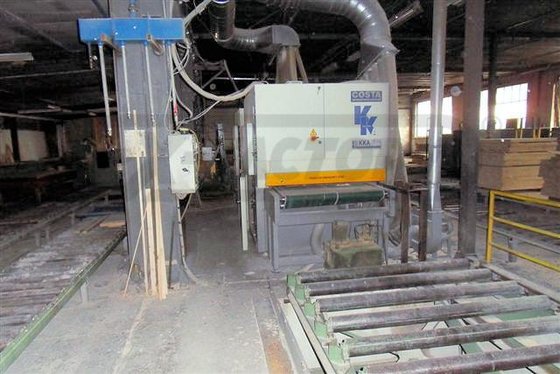

COSTA KKA/CCT/CCT 1350 TOP AND BOTTOM SANDING LINE Equipped with: 2 Rigid feed table and 1 Vacuum feed table, 7,5 kW, with – top sander comes with a Vacuum feed table, 7,5 kW, with silencer – bottom sander has 2 positions with pneumatic valve for vacuum automatic control: 50% or 100%. Costa TB32 Control bar for sectioned pad, pitch 32 mm In-feed pressure beam with lip and rubber covered rollers

-- TOP AND BOTTOM SANDERS ARE EQUIPPED WITH:

-- 1st Head: C250 Heavy-duty steel contact cylinder (drum) Pneumatic Grit-Set for quick cylinder positioning with 4-position revolver, One speed motor 37 kW. Belt speed 30 m/sec. Intermediate pressure beam with lip and rubber covered rollers

-- 2nd Head: C250 Cylinder unit (drum) 250 mm dia. Hardness Sh 90. Pneumatic Grit-Set for quick cylinder positioning with 4-position revolver. One speed motor 30 kW.

-- Belt speed 24 m/sec. Intermediate pressure beam with lip and rubber covered rollers

-- 3rd Head: Longitudinal pneumatic segmented finishing pad T1, with electronic time entry. One speed motor 11 KW. Belt speed 16 m/sec. Out-feed pressure beam with rubber covered rollers

-- Nylon brush unit, for panel cleaning, driven by 1.1 kW motor.180 mm dia. top and 140 mm dia. bottom.

-- Oscillating air-jet blowers for panels and feed belt cleaning

-- Electronic GRIT-SET: setting of drum unit with electronic read-out. Automatic inversion of rotation with on both pad units. Rotary air-jet blowers for panels cleaning on top machine. Set of double doors on belt side

-- Centralized thickness adjustment for both section of machine.

-- Constant Pass Line.
