Location:
Bensenville, IL
Manufacturer:
Enerquip
Model:
BEMH

Specifications

Condition:
used
Stock number:
46567003
Sqft:
31
Mounted:
Frame Mounted
Tubemtl:
304L SS
Shellmtl:
304L SS
Year built:
1997
Tube length:
Approximate 72"
Head material:
304 Stainless Steel
Tube material:
316 Stainless Steel
Tube pressure:
150
Shell material:
304 Stainless Steel
Shell pressure:
150
Square footage:
32
Number of passes:
4
Tube temperature:
375 degrees F
Overal dimensions:
80"L x 16"W x 75"T
Shell temperature:
375 degrees F
National board no.:
2038
Size of tube openings:
(2) 2", 1-1/2"
Horizontal or vertical:
Horizontal
Size of shell openings:
1-1/2", 1", 3/4"
Number of tube openings:
3
Number of shell openings:
3

Description

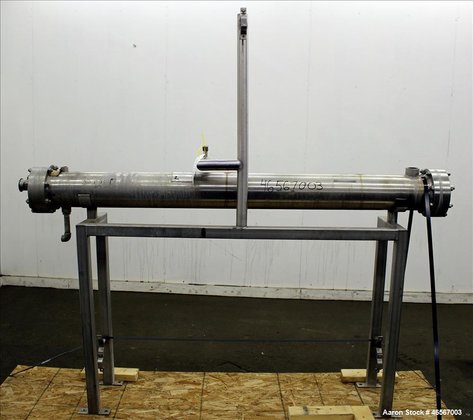

46567003 Used- Enerquip Multiple Pass Shell & Tube Heat Exchanger, Approximately 32 Square Feet, 304L Stainless Steel, Horizontal. 304L Stainless steel shell rated 150 psi at -20 to 375 degrees F. (28) 3/4" Diameter x approximate 72" long 304L stainless steel tubes rated 150 psi at -20 to 375 degrees F. Openings shell: 1-1/2", 1", 3/4", tubes: (2) 2", 1-1/2". Mounted on stainless steel frame with (4) legs. Serial# 3293. National Board# 2038. Built 1997.
