Location:
Naples, FL
Price:
$200,000 USD
Model:
D80x100 Series II

Specifications

Condition:
used
Year:
2006
Stock number:
17315
Type:
Firestick I
Width:
93"
Height:
118"
Length:
15'
Thrust:
80,000 lbs
Torque:
10,000 ft-lb
Weight:
42,500 lbs
Max flow:
150 GPM
Pullback:
80,000lbs
Fuel type:
Diesel
Max speed:
2400 rpm
Fluid tank:
75 gal
Rod loader:
Semi-Automated
Entry angle:
26-37°
Displacement:
415 cu-in
Max pressure:
1100 PSI
Pipe diameter:
3.5"
Joint diameter:
3.625"
Make and model:
John Deere 6068
Min bend radius:
197.4'
Rated engine rpm:
2400 rpm
Max spindle speed:
180 RPM
Min bore diameter:
5"
Fuel tank capacity:
75 gal
Ground drive speed:
3.2 mph
Max carriage speed:
175 ft-min
Max spindle torque:
10,000 ft-lb
Number of cylinders:
6
Emissions compliance:
Tier 3
Engine cooling system:
33 qt
Rod carrying capacity:
180'
Hydraulic tank capacity:
85 gal
Weight of pipe and large box:
6,600 lbs
Weight of pipe and small box:
3,600 lbs
Manufacturer's gross hp rating:
200 hp
Subcategory:
Hdd drills

Description

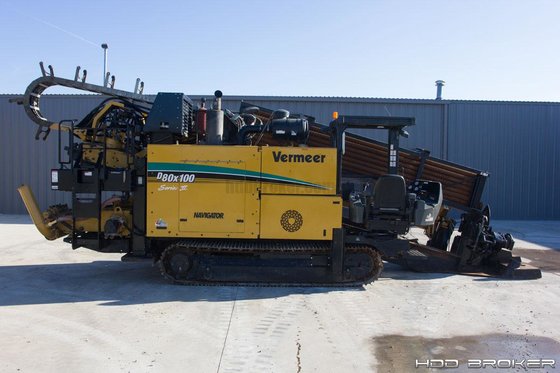

General Description: 2006 Vermeer D80x100 Series II Directional Drill. -Equipped with John Deere engine -Kerr 200 GPM On Board Mud Pump -This rig is from Canada, many of the machines 4376 hours are from idling in the cold climate. Seller willing to consider drill trades against this machine - Please tell your Sales Specialist what you have to offer!
Pipe: -(1) 18 Piece Rack of Drill Rods -(1) 24 Piece Rack of Drill Rods NOT INCLUDED - Additional Drill Stem Available.
Recent Work/Modifications: -This 2006 Vermeer D80x100 Series II Directional Drill is in great shape and has just had $15,000 in service performed at local Vermeer Dealership -Service includes the rebuild of tracks and a full service.
